9GHJ | pdb_00009ghj

Junin virus GP1-GP2 heterodimer in complex with Fab of JUN1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.09 Å
  • R-Value Free:
    0.247 (Depositor), 0.248 (DCC)
  • R-Value Work:
    0.212 (Depositor), 0.213 (DCC)
  • R-Value Observed:
    0.214 (Depositor)

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure and stabilization of the antigenic glycoprotein building blocks of the New World mammarenavirus spike complex.

Paesen, G.C.Ng, W.M.Kimuda, S.Sutton, G.Doores, K.J.Bowden, T.A.

(2025) mBio 16: e0107625-e0107625

  • DOI: https://doi.org/10.1128/mbio.01076-25
  • Primary Citation of Related Structures:
    9GHI, 9GHJ, 9QQN

  • PubMed Abstract:

    The spillover of New World (NW) arenaviruses from rodent reservoirs into human populations poses a continued risk to human health. NW arenaviruses present a glycoprotein (GP) complex on the envelope surface of the virion, which orchestrates host cell entry and is a key target of the immune response arising from infection and immunization. Each protomer of the trimeric GP is composed of a stable signal peptide, a GP1 attachment glycoprotein, and a GP2 fusion glycoprotein. To glean insights into the architecture of this key therapeutic target, we determined the crystal structures of NW GP1-GP2 heterodimeric complexes from Junín virus and Machupo virus. Due to the metastability of the interaction between GP1 and GP2, structural elucidation required the introduction of a disulfide bond at the GP1-GP2 complex interface, but no other stabilizing modifications were required. While the overall assembly of NW GP1-GP2 is conserved with that presented by Old World (OW) arenaviruses, including Lassa virus and lymphocytic choriomeningitis virus, NW GP1-GP2 complexes are structurally distinct. Indeed, we note that when compared to the OW GP1-GP2 complex, the globular portion of NW GP1 undergoes limited structural alterations upon detachment from its cognate GP2. We further demonstrate that our engineered GP1-GP2 heterodimers are antigenically relevant and recognized by neutralizing antibodies. These data provide insights into the distinct assemblies presented by NW and OW arenaviruses, as well as provide molecular-level blueprints that may guide vaccine development.IMPORTANCEAlthough the emergence of New World (NW) hemorrhagic fever mammarenaviruses poses an unceasing threat to human health, there is a paucity of reagents capable of protecting against the transmission of these pathogens from their natural rodent reservoirs. This is, in part, attributed to our limited understanding of the structure and function of the NW glycoprotein spike complex presented on the NW arenavirus surface. Here, we provide a detailed molecular-level description of how the two major components of this key therapeutic target assemble to form a key building block of the NW arenaviral spike complex. The insights gleaned from this work provide a framework for guiding the structure-based development of NW arenaviral vaccines.


  • Organizational Affiliation

    Division of Structural Biology, Centre for Human Genetics, University of Oxford, Oxford, United Kingdom.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

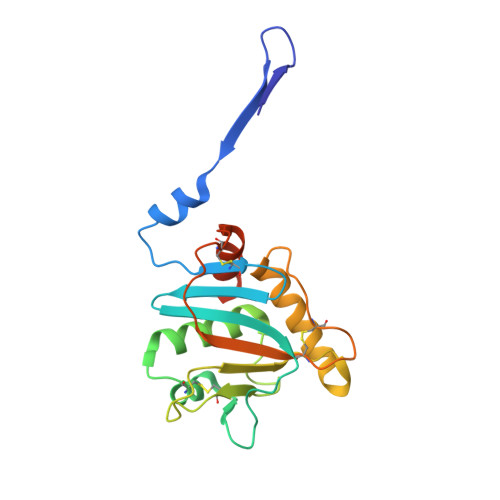

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Pre-glycoprotein polyprotein GP complex193Mammarenavirus juninenseMutation(s): 4
Gene Names: GPC
UniProt
Find proteins for C1K9J9 (Junin mammarenavirus)
Explore C1K9J9
Go to UniProtKB:  C1K9J9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC1K9J9
Glycosylation
Glycosylation Sites: 3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

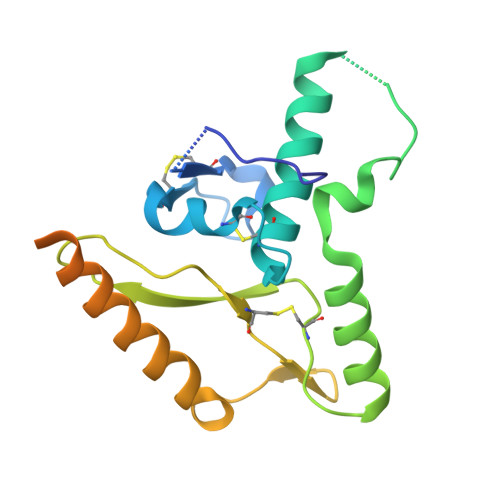

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Glycoprotein G2203Mammarenavirus juninenseMutation(s): 2
Gene Names: GPCGP-C
UniProt
Find proteins for P26313 (Junin mammarenavirus)
Explore P26313
Go to UniProtKB:  P26313
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP26313
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

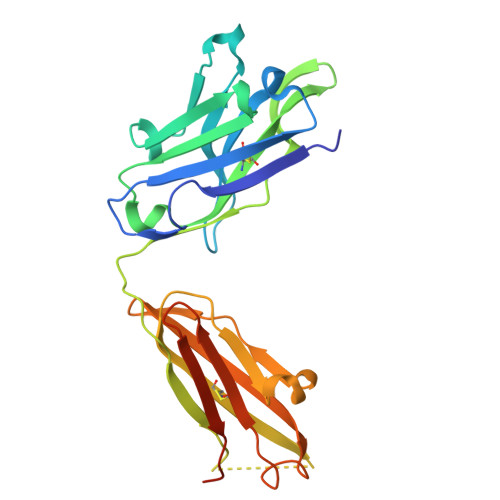

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
JUN1 heavy chainC [auth H]242Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

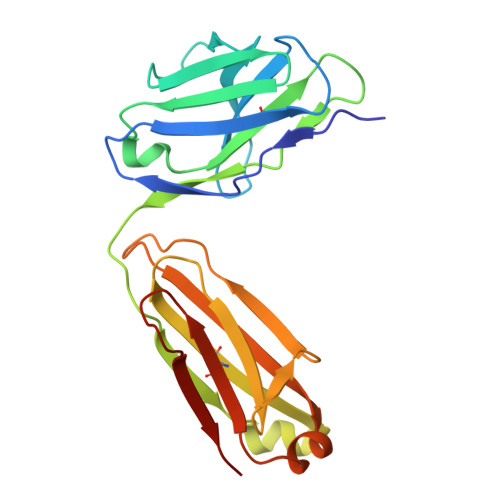

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
JUN1 light chainD [auth L]217Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 5
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseE [auth C]4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G32152BH
GlyCosmos:  G32152BH
GlyGen:  G32152BH
Entity ID: 6
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseF [auth D]3N-Glycosylation
Glycosylation Resources
GlyTouCan:  G21290RB
GlyCosmos:  G21290RB
GlyGen:  G21290RB
Entity ID: 7
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseG [auth E]4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G81315DD
GlyCosmos:  G81315DD
GlyGen:  G81315DD
Entity ID: 8
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseH [auth F],
I [auth G]
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PGE
Query on PGE

Download Ideal Coordinates CCD File
J [auth A]TRIETHYLENE GLYCOL
C6 H14 O4
ZIBGPFATKBEMQZ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.09 Å
  • R-Value Free:  0.247 (Depositor), 0.248 (DCC)
  • R-Value Work:  0.212 (Depositor), 0.213 (DCC)
  • R-Value Observed: 0.214 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 225.789α = 90
b = 71.974β = 95.895
c = 80.231γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
xia2data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMR/L009528/1
Medical Research Council (MRC, United Kingdom)United KingdomMR/S007555/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-11
    Type: Initial release
  • Version 1.1: 2025-06-25
    Changes: Database references
  • Version 1.2: 2025-07-16
    Changes: Database references
