9OC4 | pdb_00009oc4

High-resolution cryo-EM structure of KdpFABC in the E1P-ADP state in lipid nanodisc


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Conduction pathway for potassium through the E. coli pump KdpFABC.

Hussein, A.Zhang, X.Pedersen, B.P.Stokes, D.L.

(2025) bioRxiv

  • DOI: https://doi.org/10.1101/2025.05.05.652293
  • Primary Citation of Related Structures:
    9OC4

  • PubMed Abstract:

    Under osmotic stress, bacteria express a heterotetrameric protein complex, KdpFABC, which functions as an ATP-dependent K + pump to maintain intracellular potassium levels. The subunit KdpA belongs to the Superfamily of K + Transporters and adopts a pseudo-tetrameric architecture with a membrane embedded selectivity filter as seen in K + channels. KdpB belongs to the superfamily of P-type ATPases with a conserved binding site for ions within the membrane domain and three cytoplasmic domains that orchestrate ATP hydrolysis via an aspartyl phosphate intermediate. Previous work has hypothesized that K + moves parallel to the membrane plane through a 40-Å long tunnel that connects the selectivity filter of KdpA with the binding site in KdpB. In the current work, we have reconstituted KdpFABC into lipid nanodiscs and used cryo-EM to image the wild-type pump under turnover conditions. We present a 2.1 Å structure of the E1~P·ADP conformation, which reveals new features of the conduction pathway. This map shows exceedingly strong densities within the selectivity filter and at the canonical binding site, consistent with K + bound at each of these sites in this conformation. Many water molecules occupy a vestibule and the proximal end of the tunnel, which becomes markedly hydrophobic and dewetted at the subunit interface. We go on to use ATPase and ion transport assays to assess effects of numerous mutations along this proposed conduction pathway. The results confirm that K + ions pass through the tunnel and support the existence of a low affinity site in KdpB for releasing these ions to the cytoplasm. Taken together, these data shed new light on the unique partnership between a transmembrane channel and an ATP-driven pump in maintaining the large electrochemical K + gradient essential for bacterial survival.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Pharmacology, NYU School of Medicine, New York, NY.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Potassium-transporting ATPase potassium-binding subunit557Escherichia coli K-12Mutation(s): 0
Gene Names: kdpAb0698JW0686
UniProt
Find proteins for P03959 (Escherichia coli (strain K12))
Explore P03959
Go to UniProtKB:  P03959
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03959
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Potassium-transporting ATPase ATP-binding subunit682Escherichia coli K-12Mutation(s): 0
Gene Names: kdpBb0697JW0685
EC: 7.2.2.6
UniProt
Find proteins for P03960 (Escherichia coli (strain K12))
Explore P03960
Go to UniProtKB:  P03960
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03960
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Potassium-transporting ATPase KdpC subunit208Escherichia coli K-12Mutation(s): 0
Gene Names: kdpCb0696JW0684
UniProt
Find proteins for P03961 (Escherichia coli (strain K12))
Explore P03961
Go to UniProtKB:  P03961
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03961
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

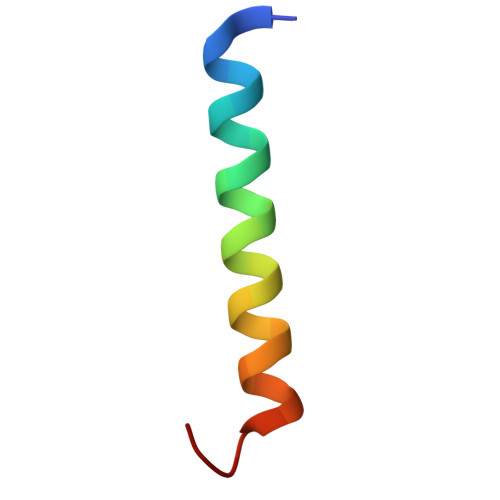

Potassium-transporting ATPase KdpF subunit29Escherichia coli K-12Mutation(s): 0
Gene Names: kdpFb4513JW0687
UniProt
Find proteins for P36937 (Escherichia coli (strain K12))
Explore P36937
Go to UniProtKB:  P36937
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36937
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
9Y0
Query on 9Y0

Download Ideal Coordinates CCD File
F [auth A],
G [auth B]
(2R)-3-(((2-aminoethoxy)(hydroxy)phosphoryl)oxy)-2-(palmitoyloxy)propyl (E)-octadec-9-enoate
C39 H76 N O8 P
DVXMEPWDARXHCX-OTMQOFQLSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
H [auth B]ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
K (Subject of Investigation/LOI)
Query on K

Download Ideal Coordinates CCD File
E [auth A],
J [auth B]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
I [auth B],
K [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
PHD
Query on PHD
B
L-PEPTIDE LINKINGC4 H8 N O7 PASP
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.6.0
MODEL REFINEMENTPHENIX1.18

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM144109

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-21
    Type: Initial release
  • Version 1.1: 2025-07-30
    Changes: Data collection, Database references
