8S6G | pdb_00008s6g

Carbohydrate active oxidoreductase from Alternaria alternata


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.21 Å
  • R-Value Free:
    0.184 (Depositor), 0.185 (DCC)
  • R-Value Work:
    0.162 (Depositor), 0.163 (DCC)
  • R-Value Observed:
    0.163 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Enzymatic oxidation of galacturonides from pectin breakdown contributes to stealth infection by Oomycota phytopathogens.

Turella, S.He, C.Zhao, L.Banerjee, S.Plouhinec, L.Assiah Yao, R.Norgaard Kejlstrup, M.C.Grisel, S.So, Y.Annic, B.Fanuel, M.Haddad Momeni, M.Bissaro, B.Meier, S.Morth, J.P.Dong, S.Berrin, J.G.Abou Hachem, M.

(2025) Nat Commun 16: 3467-3467

  • DOI: https://doi.org/10.1038/s41467-025-58668-8
  • Primary Citation of Related Structures:
    8S6G, 8S6S, 8S71, 9FFE

  • PubMed Abstract:

    Phytophthora phytopathogens from Oomycota cause devastating crop losses and threaten food security. However, Phytophthora secreted proteins that interact with plant-hosts remain underexplored. Here, auxiliary activity family 7 (AA7) enzymes from Ascomycota and Oomycota phytopathogens were shown to oxidise pectin-derived galacturonic acid and/or oligogalacturonides (OGs). Unique mono-cysteinyl-FAD oxidases with positively-charged active sites, suited to oxidise OGs, were discovered in Phytophthora sojae. The P. sojae OG oxidase genes, prevalent in this genus, were co-transcribed with pectin-degradation counterparts during early infection of soybean. Single OG oxidase knockouts significantly decreased P. sojae biomass in planta, potentially linking OG oxidases to virulence. We propose that oxidation by AA7 enzymes impairs the elicitor activity of OGs, potentially contributing to stealth Oomycota infection. Oxidation of OGs unravels a previously unknown microbial mechanism that contributes to evade plant immune-response against pathogens. Our findings highlight a unique oxidase architecture and hitherto unexplored targets for bioprotection from major plant pathogens.


  • Organizational Affiliation
    • Department of Biotechnology and Biomedicine, Technical University of Denmark, Lyngby, Denmark.

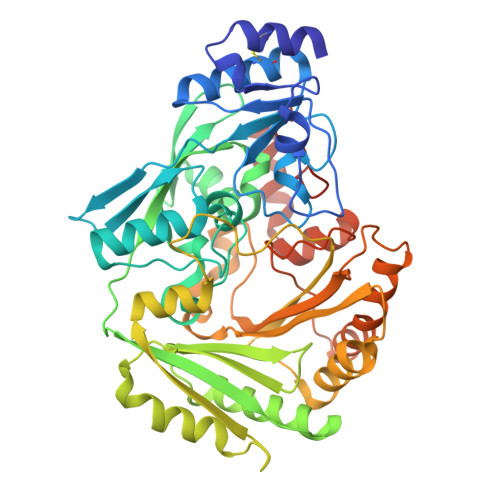

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
FAD-binding domain-containing protein487Alternaria alternataMutation(s): 0
Gene Names: CC77DRAFT_598273
UniProt
Find proteins for A0A177D2A1 (Alternaria alternata)
Explore A0A177D2A1
Go to UniProtKB:  A0A177D2A1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A177D2A1
Glycosylation
Glycosylation Sites: 4
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
B
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Small Molecules
Ligands 6 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FAD (Subject of Investigation/LOI)
Query on FAD

Download Ideal Coordinates CCD File
C [auth A]FLAVIN-ADENINE DINUCLEOTIDE
C27 H33 N9 O15 P2
VWWQXMAJTJZDQX-UYBVJOGSSA-N
EPE
Query on EPE

Download Ideal Coordinates CCD File
G [auth A],
H [auth A]
4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
K [auth A]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
I [auth A]DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
L [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
EDO
Query on EDO

Download Ideal Coordinates CCD File
D [auth A],
J [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.21 Å
  • R-Value Free:  0.184 (Depositor), 0.185 (DCC)
  • R-Value Work:  0.162 (Depositor), 0.163 (DCC)
  • R-Value Observed: 0.163 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 61.893α = 90
b = 69.541β = 93.966
c = 62.7γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
autoPROCdata reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Novo Nordisk FoundationDenmarkNNF20OC0064747

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-12
    Type: Initial release
  • Version 1.1: 2025-05-14
    Changes: Database references
