8ZO0 | pdb_00008zo0

Samll GTPase RhoA Y42C mutant in complex with GTP analogue

• PDB DOI: https://doi.org/10.2210/pdb8ZO0/pdb

• Classification: CELL INVASION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2024-05-28 Released: 2025-06-04
• Deposition Author(s): Jiang, H., Wu, H.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.21 Å
• R-Value Free:
  0.240 (Depositor), 0.240 (DCC)
• R-Value Work:
  0.184 (Depositor), 0.183 (DCC)

Starting Model: experimental

Literature

Magnesium Ion Locking RhoA Mutant in Highly Dynamic Cycling Conformations

Wu, H., Jiang, H.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 21.01 kDa
• Atom Count: 1,517
• Modeled Residue Count: 178
• Deposited Residue Count: 182
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

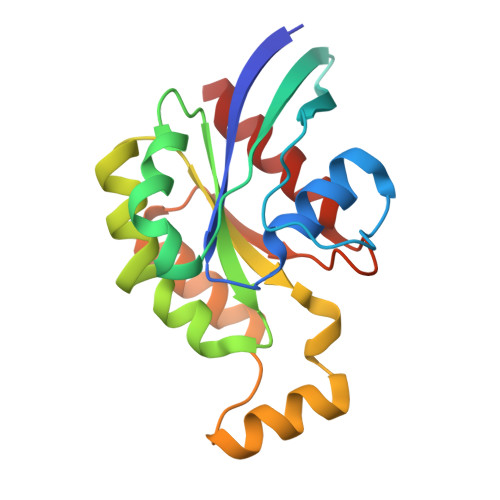

Transforming protein RhoA	A	182	Homo sapiens	Mutation(s): 1  Gene Names: RHOA, ARH12, ARHA, RHO12 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P61586 (Homo sapiens) Explore P61586  Go to UniProtKB:  P61586
PHAROS:  P61586 GTEx:  ENSG00000067560

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GNP (Subject of Investigation/LOI)	B [auth A]	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER C10 H17 N6 O13 P3 UQABYHGXWYXDTK-UUOKFMHZSA-N
MG (Subject of Investigation/LOI)	C [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.21 Å
• R-Value Free:  0.240 (Depositor), 0.240 (DCC)
• R-Value Work:  0.184 (Depositor), 0.183 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 32.278	α = 90
b = 63.682	β = 90
c = 81.595	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	phasing
HKL-3000	data scaling

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-06-04
Deposition Author(s): Jiang, H., Wu, H.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-06-04
  Type: Initial release
