9H91 | pdb_00009h91

Cryo-EM structure of the Vibrio natrigens 50S ribosomal subunit in complex with the proline-rich antimicrobial peptide Bac5(1-17).


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

The structure of the Vibrio natriegens 70S ribosome in complex with the proline-rich antimicrobial peptide Bac5(1-17).

Raulf, K.Koller, T.O.Beckert, B.Lepak, A.Morici, M.Mardirossian, M.Scocchi, M.Bange, G.Wilson, D.N.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf324
  • Primary Citation of Related Structures:
    9H90, 9H91

  • PubMed Abstract:

    Proline-rich antimicrobial peptides (PrAMPs) are produced as part of the innate immune response of animals, insects, and plants. The well-characterized mammalian PrAMP bactenecin-5 (Bac5) has been shown to help fight bacterial infection by binding to the bacterial ribosome and inhibiting protein synthesis. In the absence of Bac5-ribosome structures, the binding mode of Bac5 and exact mechanism of action has remained unclear. Here, we present a cryo-electron microscopy structure of Bac5 in complex with the 70S ribosome from the Gram-negative marine bacterium Vibrio natriegens. The structure shows that, despite sequence similarity to Bac7 and other type I PrAMPs, Bac5 displays a completely distinct mode of interaction with the ribosomal exit tunnel. Bac5 overlaps with the binding site of both A- and P-site transfer RNAs bound at the peptidyltransferase center, suggesting that this type I PrAMP can interfere with late stages of translation initiation as well as early stages of elongation. Collectively, our study presents a ribosome structure from V. natriegens, a fast-growing bacterium that has interesting biotechnological and synthetic biology applications, as well as providing additional insights into the diverse binding modes that type I PrAMPs can utilize to inhibit protein synthesis.


  • Organizational Affiliation
    • Institute for Biochemistry and Molecular Biology, University of Hamburg, Hamburg 20146, Germany.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L32A [auth 0]56Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y2T2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y2T2
Go to UniProtKB:  A0AAN0Y2T2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y2T2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L33B [auth 1]56Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0XZW0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0XZW0
Go to UniProtKB:  A0AAN0XZW0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0XZW0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L34C [auth 2]44Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y4Q5 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y4Q5
Go to UniProtKB:  A0AAN0Y4Q5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y4Q5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L35D [auth 3]64Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y2A7 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y2A7
Go to UniProtKB:  A0AAN0Y2A7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y2A7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L36E [auth 4]37Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y149 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y149
Go to UniProtKB:  A0AAN0Y149
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y149
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Cathelicidin-2F [auth 9]17Bos taurusMutation(s): 0
UniProt
Find proteins for P19660 (Bos taurus)
Explore P19660
Go to UniProtKB:  P19660
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19660
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L2H [auth C]274Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUJ7 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUJ7
Go to UniProtKB:  A0AAN1CUJ7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUJ7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

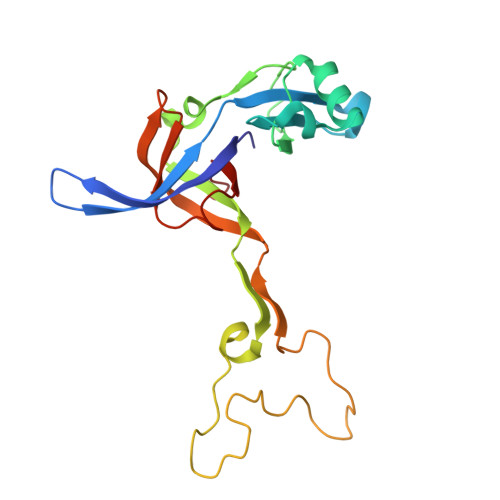

50S ribosomal protein L3I [auth D]209Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUL8 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUL8
Go to UniProtKB:  A0AAN1CUL8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUL8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L4J [auth E]200Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CVG6 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CVG6
Go to UniProtKB:  A0AAN1CVG6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CVG6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L6K [auth G]177Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUM2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUM2
Go to UniProtKB:  A0AAN1CUM2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUM2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL9L [auth H]150Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y4G6 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y4G6
Go to UniProtKB:  A0AAN0Y4G6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y4G6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L13M [auth J]142Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0U3 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0U3
Go to UniProtKB:  A0AAN0Y0U3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0U3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L14N [auth K]123Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0F6 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0F6
Go to UniProtKB:  A0AAN0Y0F6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0F6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L15O [auth L]144Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUX1 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUX1
Go to UniProtKB:  A0AAN1CUX1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUX1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L16P [auth M]136Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0C5 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0C5
Go to UniProtKB:  A0AAN0Y0C5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0C5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L17Q [auth N]126Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y071 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y071
Go to UniProtKB:  A0AAN0Y071
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y071
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L18R [auth O]117Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CVH0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CVH0
Go to UniProtKB:  A0AAN1CVH0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CVH0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 19
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L19S [auth P]117Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CWW0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CWW0
Go to UniProtKB:  A0AAN1CWW0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CWW0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 20
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L20T [auth Q]117Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CVB0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CVB0
Go to UniProtKB:  A0AAN1CVB0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CVB0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 21
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L21U [auth R]103Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CVI2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CVI2
Go to UniProtKB:  A0AAN1CVI2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CVI2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 22
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L22V [auth S]110Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0L0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0L0
Go to UniProtKB:  A0AAN0Y0L0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0L0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 23
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L23W [auth T]100Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUR9 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUR9
Go to UniProtKB:  A0AAN1CUR9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUR9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 24
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L24X [auth U]105Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y061 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y061
Go to UniProtKB:  A0AAN0Y061
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y061
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 25
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L25Y [auth V]92Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y4S6 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y4S6
Go to UniProtKB:  A0AAN0Y4S6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y4S6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 26
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L27Z [auth W]85Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUT7 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUT7
Go to UniProtKB:  A0AAN1CUT7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUT7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 27
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L28AA [auth X]78Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y076 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y076
Go to UniProtKB:  A0AAN0Y076
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y076
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 28
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L29BA [auth Y]63Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0XZZ8 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0XZZ8
Go to UniProtKB:  A0AAN0XZZ8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0XZZ8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 29
MoleculeChains Sequence LengthOrganismDetailsImage
50S ribosomal protein L30CA [auth Z]58Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUK2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUK2
Go to UniProtKB:  A0AAN1CUK2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUK2
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains LengthOrganismImage
5S ribosomal RNAG [auth B]121Vibrio natriegens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 30
MoleculeChains LengthOrganismImage
23S ribosomal RNADA [auth A]2,721Vibrio natriegens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download Ideal Coordinates CCD File
EA [auth 4]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTREFMAC5.8.0425

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentDLR01Kl1820
German Research Foundation (DFG)GermanySPP1879 (DFG WI3285/5-2)

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-21
    Type: Initial release
