9A1E | pdb_00009a1e

Integrative structure of the XcpHIJK quaternary complex of a type II secretion system pseudopilin

Integrative structure models are generated using different types of input information, including varied experimental data, physical principles, statistical preferences, and other prior information.

PDB DOI: https://doi.org/10.2210/pdb9A1E/pdb

Organism(s): Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)
Mutation(s): No

Deposited: 2021-05-03 Released: 2021-06-18
Deposition Author(s): Escobar CA, Douzi B, Ball G, Barbat B, Alphonse S, Quinton L, Voulhoux R, Forest KT

Integrative Structure Snapshot

Multi-Scale: No
Multi-State: No
Ordered-State: No
Deposited Models: 1
Representative Model: 1

wwPDB ValidationFull ReportSummary Report

This is version 1.0 of the entry. See complete history.

Literature

Structural interactions define assembly adapter function of a type II secretion system pseudopilin

Escobar CA, Douzi B, Ball G, Barbat B, Alphonse S, Quinton L, Voulhoux R, Forest KT

(2021) Structure 29: 1-12

DOI: https://doi.org/10.1016/j.str.2021.05.015

Macromolecule Content

Total Structure Weight: 86.48 kDa
Atom Count: 4,977
Modeled Residue Count: 655
Deposited Residue Count: 655
Unique protein chains: 4

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

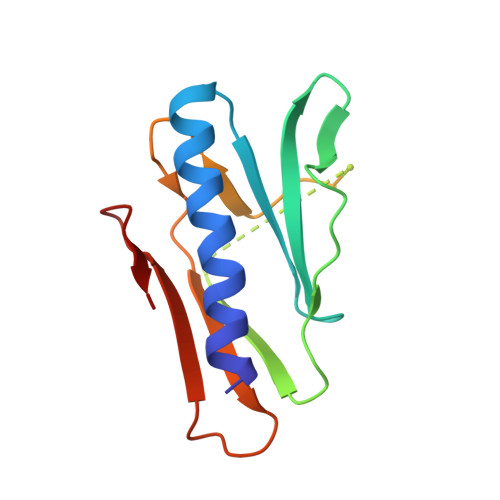

XcpH	A	131	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0 Gene Names: xcpU
UniProt
Find proteins for Q00515 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00515 Go to UniProtKB: Q00515
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q00515
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

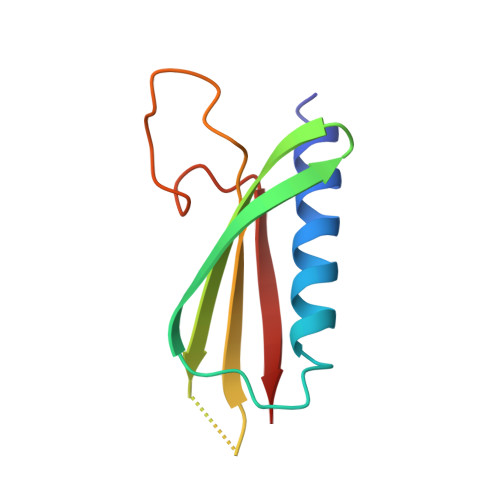

XcpI	B	89	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0 Gene Names: xcpV
UniProt
Find proteins for Q00516 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00516 Go to UniProtKB: Q00516
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q00516
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

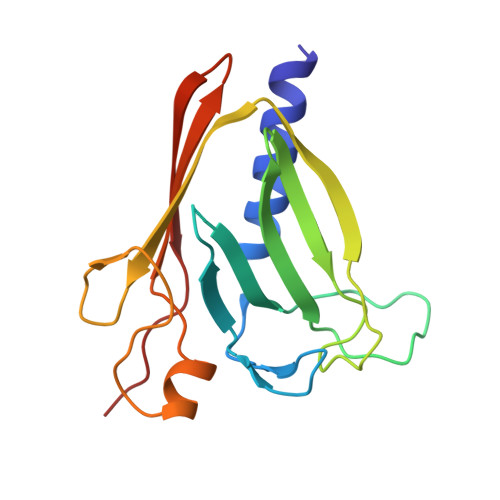

XcpJ	C	162	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0 Gene Names: xcpW
UniProt
Find proteins for Q00517 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00517 Go to UniProtKB: Q00517
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q00517
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

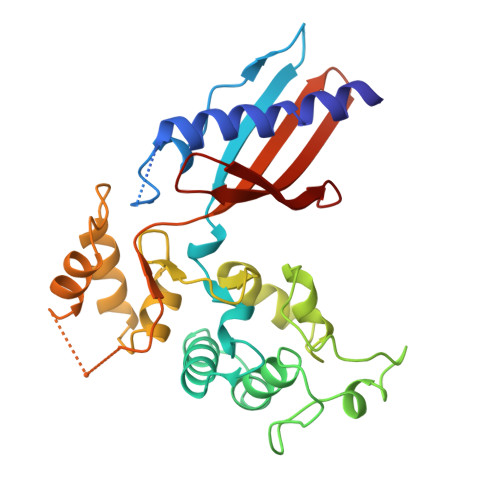

XcpK	D	273	Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)	Mutation(s): 0 Gene Names: xcpX
UniProt
Find proteins for Q00518 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q00518 Go to UniProtKB: Q00518
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q00518
Sequence Annotations Expand
Reference Sequence
