9CCX | pdb_00009ccx

Crystal Structure of the Klebsiella pneumoniae LpxH/JH-LPH-86 complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:
    0.229 (Depositor), 0.227 (DCC)
  • R-Value Work:
    0.194 (Depositor), 0.195 (DCC)
  • R-Value Observed:
    0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Design and Evaluation of Pyridinyl Sulfonyl Piperazine LpxH Inhibitors with Potent Antibiotic Activity Against Enterobacterales.

Ennis, A.F.Cochrane, C.S.Dome, P.A.Jeong, P.Yu, J.Lee, H.Williams, C.S.Ha, Y.Yang, W.Zhou, P.Hong, J.

(2024) JACS Au 4: 4383-4393

  • DOI: https://doi.org/10.1021/jacsau.4c00731
  • Primary Citation of Related Structures:
    9CCX, 9CCY, 9CCZ, 9CD0, 9CD1

  • PubMed Abstract:

    Enterobacterales, a large order of Gram-negative bacteria, including Escherichia coli and Klebsiella pneumoniae , are major causes of urinary tract and gastrointestinal infections, pneumonia, and other diseases in healthcare settings and communities. ESBL-producing Enterobacterales and carbapenem-resistant Enterobacterales can break down commonly used antibiotics, with some strains being resistant to all available antibiotics. This public health threat necessitates the development of novel antibiotics, ideally targeting new pathways in these bacteria. Gram-negative bacteria possess an outer membrane enriched with lipid A, a saccharolipid that serves as the membrane anchor of lipopolysaccharides and the active component of the bacterial endotoxin, causing septic shock. The biosynthesis of lipid A is crucial for the viability of Gram-negative bacteria, and as an essential enzyme in this process, LpxH has emerged as a promising target for developing novel antibiotics against multidrug-resistant Gram-negative pathogens. Here, we report the development of pyridinyl sulfonyl piperazine LpxH inhibitors. Among them, ortho -substituted pyridinyl compounds significantly boost LpxH inhibition and antibiotic activity over the original phenyl series. Structural and QM/MM analyses reveal that these improved activities are primarily due to the enhanced interaction between F141 of the LpxH insertion lid and the pyridinyl group. Incorporation of the N -methyl- N -phenyl-methanesulfonamide moiety into the pyridinyl sulfonyl piperazine backbone results in JH-LPH-106 and JH-LPH-107, both of which exhibit potent antibiotic activity against wild-type Enterobacterales such as K. pneumoniae and E. coli . JH-LPH-107 exhibits a low rate of spontaneous resistance and a high safety window in vitro , rendering it an excellent lead for further clinical development.


  • Organizational Affiliation
    • Department of Chemistry, Duke University, Durham, North Carolina 27708, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

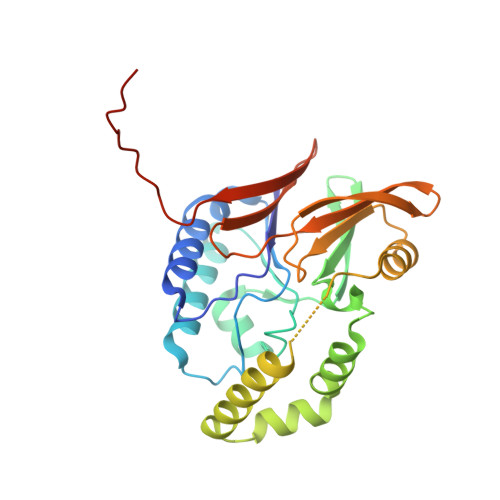

UDP-2,3-diacylglucosamine hydrolase259Klebsiella pneumoniaeMutation(s): 0
Gene Names: lpxH_1lpxHC3483_19950NCTC9128_00880SAMEA104305404_03891
EC: 3.6.1.54
UniProt
Find proteins for A6T5R0 (Klebsiella pneumoniae subsp. pneumoniae (strain ATCC 700721 / MGH 78578))
Explore A6T5R0
Go to UniProtKB:  A6T5R0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6T5R0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:  0.229 (Depositor), 0.227 (DCC)
  • R-Value Work:  0.194 (Depositor), 0.195 (DCC)
  • R-Value Observed: 0.196 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 106.63α = 90
b = 106.63β = 90
c = 54.27γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-12
    Type: Initial release
