9CHM | pdb_00009chm

Cryo-EM structure of FAN1 R507H and PCNA in intermediate state


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.47 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural and molecular basis of PCNA-activated FAN1 nuclease function in DNA repair.

Li, F.Phadte, A.S.Bhatia, M.Barndt, S.Monte Carlo Iii, A.R.Hou, C.D.Yang, R.Strock, S.Pluciennik, A.

(2025) Nat Commun 16: 4411-4411

  • DOI: https://doi.org/10.1038/s41467-025-59323-y
  • Primary Citation of Related Structures:
    9CG4, 9CHM, 9CL7, 9CMA

  • PubMed Abstract:

    FAN1 is a DNA dependent nuclease whose proper function is essential for maintaining human health. For example, a genetic variant in FAN1, Arg507 to His hastens onset of Huntington's disease, a repeat expansion disorder for which there is no cure. How the Arg507His mutation affects FAN1 structure and enzymatic function is unknown. Using cryo-EM and biochemistry, we have discovered that FAN1 arginine 507 is critical for its interaction with PCNA, and mutation of Arg507 to His attenuates assembly of the FAN1-PCNA complex on a disease-relevant extrahelical DNA extrusions formed within DNA repeats. This mutation concomitantly abolishes PCNA-FAN1-dependent cleavage of such extrusions, thus unraveling the molecular basis for a specific mutation in FAN1 that dramatically hastens the onset of Huntington's disease. These results underscore the importance of PCNA to the genome stabilizing function of FAN1.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Biology, Thomas Jefferson University, Philadelphia, PA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

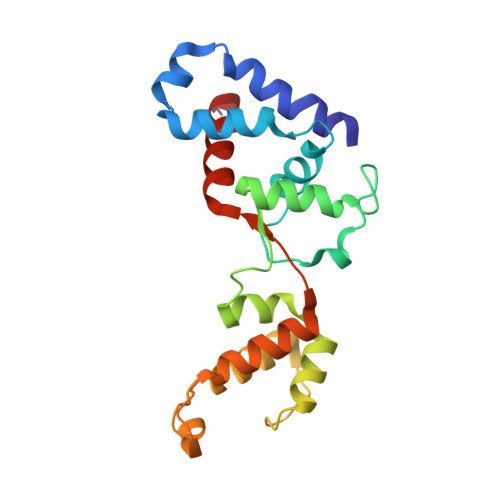

Fanconi-associated nuclease 1A [auth E]184Homo sapiensMutation(s): 1
Gene Names: FAN1KIAA1018MTMR15
EC: 3.1.21 (PDB Primary Data), 3.1.4.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y2M0 (Homo sapiens)
Explore Q9Y2M0
Go to UniProtKB:  Q9Y2M0
PHAROS:  Q9Y2M0
GTEx:  ENSG00000198690
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y2M0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

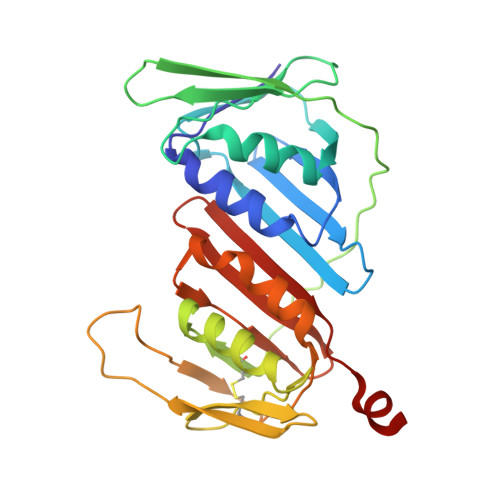

Proliferating cell nuclear antigen
B, C, D
261Homo sapiensMutation(s): 0
Gene Names: PCNA
UniProt & NIH Common Fund Data Resources
Find proteins for P12004 (Homo sapiens)
Explore P12004
Go to UniProtKB:  P12004
PHAROS:  P12004
GTEx:  ENSG00000132646
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP12004
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.47 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-19
    Type: Initial release
  • Version 1.1: 2025-06-04
    Changes: Data collection
  • Version 1.2: 2025-09-03
    Changes: Data collection, Database references, Structure summary
