9CT8 | pdb_00009ct8

Tricomplex of Compound 2, KRAS G12D, and CypA

PDB DOI: https://doi.org/10.2210/pdb9CT8/pdb

Classification: HYDROLASE/HYDROLASE INHIBITOR
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-07-24 Released: 2025-07-23
Deposition Author(s): Zhang, D., Bar Ziv, T., Knox, J.E., Yano, J.K.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.28 Å
R-Value Free:
0.190 (Depositor), 0.194 (DCC)
R-Value Work:
0.150 (Depositor), 0.160 (DCC)
R-Value Observed:
0.152 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

A neomorphic protein interface catalyzes covalent inhibition of RAS

Wildes, D.

(2025) Science

DOI: https://doi.org/10.1126/science.ads0239

Macromolecule Content

Total Structure Weight: 78.09 kDa
Atom Count: 6,362
Modeled Residue Count: 669
Deposited Residue Count: 672
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

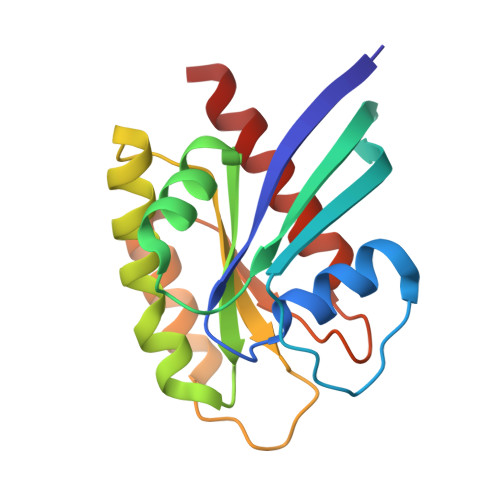

Isoform 2B of GTPase KRas	A, B	170	Homo sapiens	Mutation(s): 1 Gene Names: KRAS, KRAS2, RASK2 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens) Go to UniProtKB: P01116
PHAROS: P01116 GTEx: ENSG00000133703
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P01116-2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

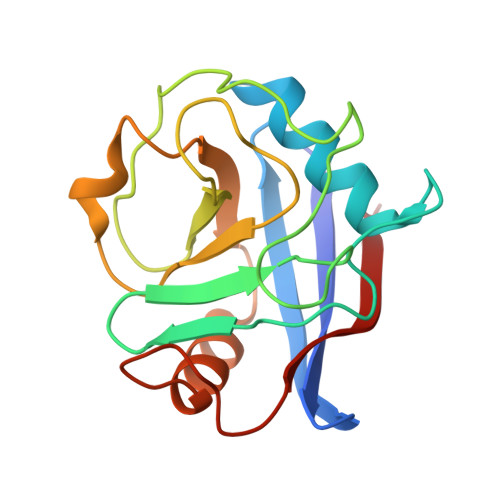

Peptidyl-prolyl cis-trans isomerase A	C, D	166	Homo sapiens	Mutation(s): 0 Gene Names: PPIA, CYPA EC: 5.2.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for P62937 (Homo sapiens) Explore P62937 Go to UniProtKB: P62937
PHAROS: P62937 GTEx: ENSG00000196262
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62937
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1AZX Query on A1AZX Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain K [auth B] MOL2 format, chain G [auth A] MOL2 format, chain K [auth B] mmCIF format, chain G [auth A] mmCIF format, chain K [auth B]	G [auth A], K [auth B]	(2R)-2-amino-N-(2-{[(1R)-1-cyclopentyl-2-{[(1M,8S,10S,14S,21M)-22-ethyl-4-hydroxy-21-{2-[(1R)-1-methoxyethyl]pyridin-3-yl}-18,18-dimethyl-9,15-dioxo-16-oxa-10,22,28-triazapentacyclo[18.5.2.1~2,6~.1~10,14~.0~23,27~]nonacosa-1(25),2(29),3,5,20,23,26-heptaen-8-yl]amino}-2-oxoethyl](methyl)amino}-2-oxoethyl)-N-methylpropanamide (non-preferred name) C₅₁ H₆₈ N₈ O₈ SCSPCGZHAKKNOM-UOVDXZPVSA-N		Interactions Focus chain G [auth A] Focus chain K [auth B] Interactions & Density Focus chain G [auth A] Focus chain K [auth B]
GNP Query on GNP Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain I [auth B] MOL2 format, chain E [auth A] MOL2 format, chain I [auth B] mmCIF format, chain E [auth A] mmCIF format, chain I [auth B]	E [auth A], I [auth B]	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER C₁₀ H₁₇ N₆ O₁₃ P₃ UQABYHGXWYXDTK-UUOKFMHZSA-N		Interactions Focus chain E [auth A] Focus chain I [auth B] Interactions & Density Focus chain E [auth A] Focus chain I [auth B]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain L [auth B] MOL2 format, chain H [auth A] MOL2 format, chain L [auth B] mmCIF format, chain H [auth A] mmCIF format, chain L [auth B]	H [auth A], L [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain H [auth A] Focus chain L [auth B] Interactions & Density Focus chain H [auth A] Focus chain L [auth B]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain J [auth B] MOL2 format, chain F [auth A] MOL2 format, chain J [auth B] mmCIF format, chain F [auth A] mmCIF format, chain J [auth B]	F [auth A], J [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain J [auth B] Interactions & Density Focus chain F [auth A] Focus chain J [auth B]
