9D9F | pdb_00009d9f

Candida albicans Hsp90 nucleotide binding domain in complex with BRI2311

• PDB DOI: https://doi.org/10.2210/pdb9D9F/pdb

• Classification: CHAPERONE
• Organism(s): Candida albicans SC5314
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-08-21 Released: 2025-09-10
• Deposition Author(s): Kuntz, D.A., Prive, G.G.
• Funding Organization(s): Canadian Institutes of Health Research (CIHR)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.78 Å
• R-Value Free:
  0.199 (Depositor), 0.199 (DCC)
• R-Value Work:
  0.175 (Depositor), 0.175 (DCC)

Starting Model: experimental

Literature

Final Title 'To Be Determined'

Kuntz, D.A., Prive, G.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: homology

Macromolecule Content

• Total Structure Weight: 25.66 kDa
• Atom Count: 2,189
• Modeled Residue Count: 215
• Deposited Residue Count: 221
• Unique protein chains: 1

Macromolecules

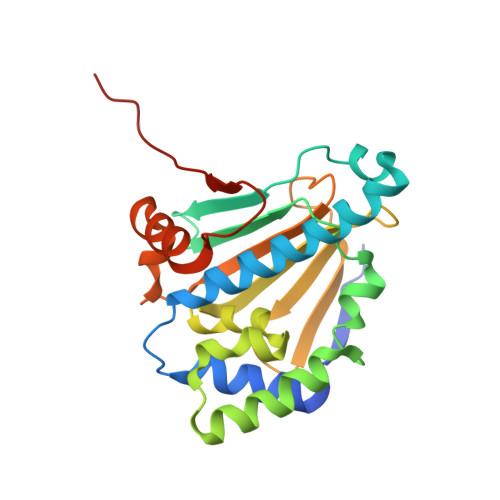

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Heat shock protein 90 homolog	A	221	Candida albicans SC5314	Mutation(s): 0  Gene Names: HSP90, CAALFM_C702030WA, CaJ7.0234, CaO19.13868, CaO19.6515
UniProt
Find proteins for P46598 (Candida albicans (strain SC5314 / ATCC MYA-2876)) Explore P46598  Go to UniProtKB:  P46598

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1A26 (Subject of Investigation/LOI)	B [auth A]	(1P)-3-amino-6-[({1-[(2S)-2-(2,4-difluorophenyl)-2-hydroxy-3-(1H-1,2,4-triazol-1-yl)propyl]piperidin-4-yl}amino)methyl]-1-(4-phenyl-3,4-dihydro-2H-1,4-benzoxazin-6-yl)thieno[2,3-b]pyrazin-2(1H)-one C37 H37 F2 N9 O3 S PRCZCNBGHGABSD-QNGWXLTQSA-N
MG	C [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.78 Å
• R-Value Free:  0.199 (Depositor), 0.199 (DCC)
• R-Value Work:  0.175 (Depositor), 0.175 (DCC)

Space Group: P 4₃ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 73.874	α = 90
b = 73.874	β = 90
c = 108.817	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
CrysalisPro	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Kuntz, D.A., Prive, G.G.

---

Funding Organization	Location	Grant Number
Canadian Institutes of Health Research (CIHR)	Canada	--

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
