9DGO | pdb_00009dgo

Designed miniproteins potently inhibit and protect against MERS-CoV. Crystal structure of MERS-CoV S RBD in complex with miniprotein cb3


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:
    0.219 (Depositor), 0.217 (DCC)
  • R-Value Work:
    0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.191 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Designed miniproteins potently inhibit and protect against MERS-CoV.

Ragotte, R.J.Tortorici, M.A.Catanzaro, N.J.Addetia, A.Coventry, B.Froggatt, H.M.Lee, J.Stewart, C.Brown, J.T.Goreshnik, I.Sims, J.N.Milles, L.F.Wicky, B.I.M.Glogl, M.Gerben, S.Kang, A.Bera, A.K.Sharkey, W.Schafer, A.Harkema, J.R.Baric, R.S.Baker, D.Veesler, D.

(2025) Cell Rep 44: 115760-115760

  • DOI: https://doi.org/10.1016/j.celrep.2025.115760
  • Primary Citation of Related Structures:
    9DGO

  • PubMed Abstract:

    Middle East respiratory syndrome coronavirus (MERS-CoV) is a zoonotic pathogen with a 36% case-fatality rate in humans. No vaccines or specific therapeutics are currently approved for use in humans or the camel host reservoir. Here, we computationally designed monomeric and homo-oligomeric miniproteins that bind with high affinity to the MERS-CoV spike (S) glycoprotein, the main target of neutralizing antibodies and vaccine development. We show that these miniproteins broadly neutralize a panel of MERS-CoV S variants, spanning the known antigenic diversity of this pathogen, by targeting a conserved site in the receptor-binding domain (RBD). The miniproteins directly compete with binding of the dipeptidylpeptidase 4 (DPP4) receptor to MERS-CoV S, thereby blocking viral attachment to the host entry receptor and subsequent membrane fusion. Intranasal administration of a lead miniprotein provides prophylactic protection against stringent MERS-CoV challenge in mice, motivating its future clinical development as a next-generation countermeasure against this virus with pandemic potential.


  • Organizational Affiliation

    Department of Biochemistry, University of Washington, Seattle, WA 98195, USA; Institute for Protein Design, University of Washington, Seattle, WA 98195, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

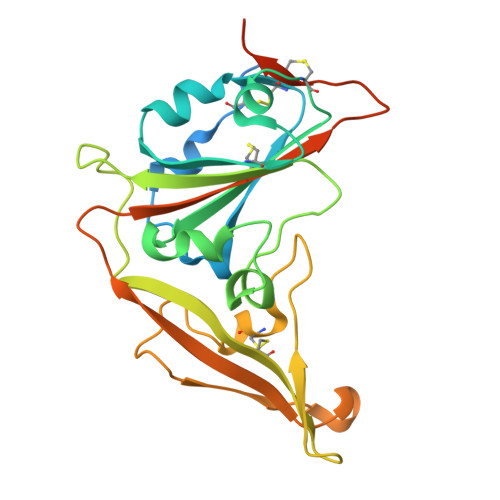

Spike glycoprotein
A, B
258Middle East respiratory syndrome-related coronavirusMutation(s): 0
UniProt
Find proteins for A0A0U2GPS7 (Middle East respiratory syndrome-related coronavirus)
Explore A0A0U2GPS7
Go to UniProtKB:  A0A0U2GPS7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0U2GPS7
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

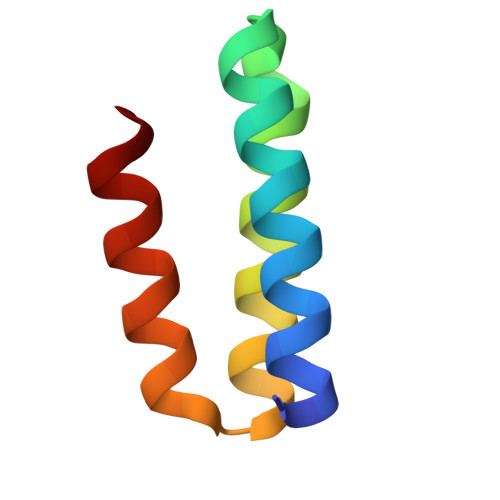

Designed miniprotein cb_3
C, D
58synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
E
2N-Glycosylation
Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
F
3N-Glycosylation
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:  0.219 (Depositor), 0.217 (DCC)
  • R-Value Work:  0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.191 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 61.619α = 90
b = 76.291β = 90
c = 136.235γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI158186

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-18
    Type: Initial release
