9DN2 | pdb_00009dn2

TJ5-1 Fab in complex with NG2 COBRA hemagglutinin

PDB DOI: https://doi.org/10.2210/pdb9DN2/pdb
EM Map EMD-47024: EMDB EMDataResource

Classification: VIRAL PROTEIN/Immune System
Organism(s): Influenza A virus, Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-09-16 Released: 2025-07-30
Deposition Author(s): Nagashima, K., Mousa, J.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.24 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

TJ5-1 Fab in complex with NG2 COBRA hemagglutinin

Nagashima, K., Mousa, J.

To be published.

Macromolecule Content

Total Structure Weight: 277.47 kDa
Atom Count: 17,397
Modeled Residue Count: 2,148
Deposited Residue Count: 2,406
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

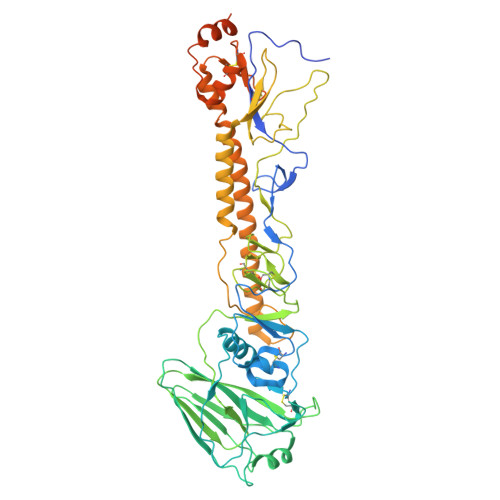

Hemagglutinin	A, H [auth B], I [auth C]	573	Influenza A virus	Mutation(s): 0 Gene Names: HA
UniProt
Find proteins for A0A5B8WJL2 (Influenza A virus) Explore A0A5B8WJL2 Go to UniProtKB: A0A5B8WJL2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A5B8WJL2
Glycosylation
Glycosylation Sites: 10	Glycosylation Focus chain A Focus chain H [auth B] Focus chain I [auth C]
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

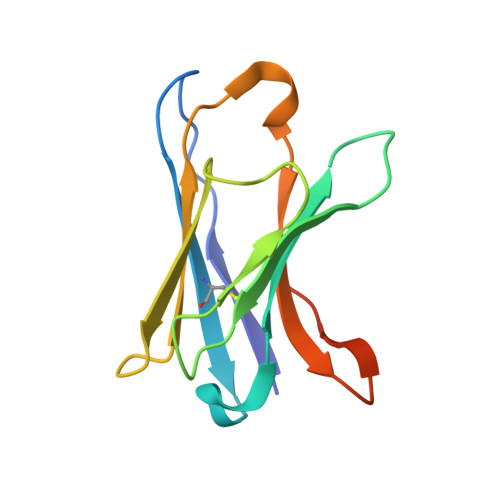

TJ5-1 heavy chain Fab fragment	B [auth H], C [auth I], D [auth J]	118	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

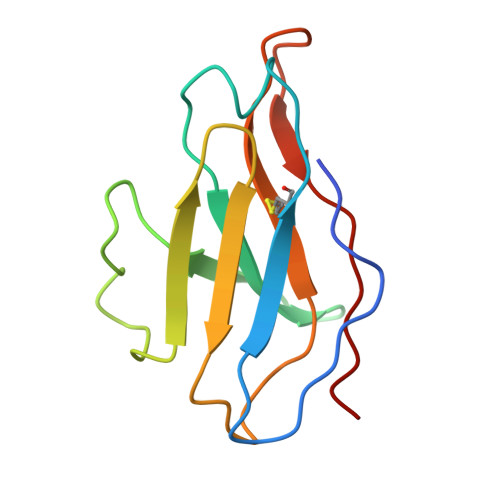

TJ5-1 light chain Fab fragment	E [auth L], F [auth M], G [auth N]	111	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	J [auth D], K [auth E], L [auth F], N [auth K], O, J [auth D], K [auth E], L [auth F], N [auth K], O, P, Q, S, T, U, V, X	2		N-Glycosylation	Interactions Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F] Focus chain N [auth K] Focus chain O Focus chain P Focus chain Q Focus chain S Focus chain T Focus chain U Focus chain V Focus chain X Interactions & Density Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F] Focus chain N [auth K] Focus chain O Focus chain P Focus chain Q Focus chain S Focus chain T Focus chain U Focus chain V Focus chain X
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	M [auth G], R, W	3		N-Glycosylation	Interactions Focus chain M [auth G] Focus chain R Focus chain W Interactions & Density Focus chain M [auth G] Focus chain R Focus chain W
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download Ideal Coordinates CCD File SDF format, chain AA [auth A] SDF format, chain BA [auth A] SDF format, chain CA [auth A] SDF format, chain DA [auth B] SDF format, chain EA [auth B] SDF format, chain FA [auth B] SDF format, chain GA [auth B] SDF format, chain HA [auth B] SDF format, chain IA [auth C] SDF format, chain JA [auth C] SDF format, chain KA [auth C] SDF format, chain LA [auth C] SDF format, chain MA [auth C] SDF format, chain Y [auth A] SDF format, chain Z [auth A] MOL2 format, chain AA [auth A] MOL2 format, chain BA [auth A] MOL2 format, chain CA [auth A] MOL2 format, chain DA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain GA [auth B] MOL2 format, chain HA [auth B] MOL2 format, chain IA [auth C] MOL2 format, chain JA [auth C] MOL2 format, chain KA [auth C] MOL2 format, chain LA [auth C] MOL2 format, chain MA [auth C] MOL2 format, chain Y [auth A] MOL2 format, chain Z [auth A] mmCIF format, chain AA [auth A] mmCIF format, chain BA [auth A] mmCIF format, chain CA [auth A] mmCIF format, chain DA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain GA [auth B] mmCIF format, chain HA [auth B] mmCIF format, chain IA [auth C] mmCIF format, chain JA [auth C] mmCIF format, chain KA [auth C] mmCIF format, chain LA [auth C] mmCIF format, chain MA [auth C] mmCIF format, chain Y [auth A] mmCIF format, chain Z [auth A]	AA [auth A] BA [auth A] CA [auth A] DA [auth B] EA [auth B] AA [auth A], BA [auth A], CA [auth A], DA [auth B], EA [auth B], FA [auth B], GA [auth B], HA [auth B], IA [auth C], JA [auth C], KA [auth C], LA [auth C], MA [auth C], Y [auth A], Z [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth C] Focus chain JA [auth C] Focus chain KA [auth C] Focus chain LA [auth C] Focus chain MA [auth C] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth C] Focus chain JA [auth C] Focus chain KA [auth C] Focus chain LA [auth C] Focus chain MA [auth C] Focus chain Y [auth A] Focus chain Z [auth A]
