9EE5 | pdb_00009ee5

Cryo-EM structure of the ONO2550289-bound prostaglandin D2 receptor (DP1)-bRIL-Fab complex

• PDB DOI: https://doi.org/10.2210/pdb9EE5/pdb
• EM Map EMD-47950: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN/Immune System
• Organism(s): Homo sapiens, synthetic construct
• Expression System: Spodoptera frugiperda, Escherichia coli
• Mutation(s): Yes


• Deposited: 2024-11-18 Released: 2025-09-03
• Deposition Author(s): Davoudinasab, B., Cherezov, V., Han, G.W.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.89 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structural insights into mechanism of activation and deactivation of prostaglandin receptors

Davoudinasab, B., Han, G.W., Cherezov, V.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A2B1C1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 117.25 kDa
• Atom Count: 7,511
• Modeled Residue Count: 973
• Deposited Residue Count: 1,061
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
anti-BRIL Fab Heavy Chain	A [auth H]	229	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
anti-Fab Nanobody synthetic construct	B [auth K]	123	synthetic construct	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

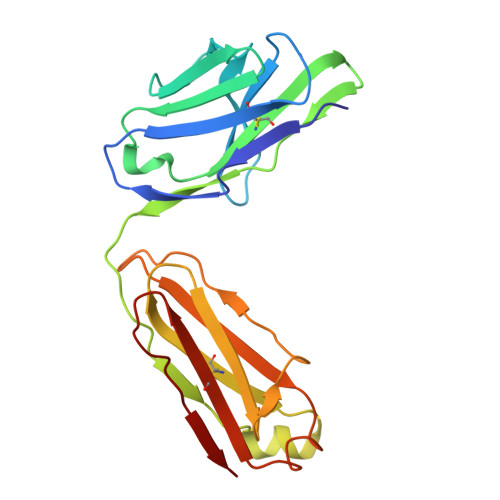

anti-BRIL Fab Light Chain	C [auth L]	214	synthetic construct	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

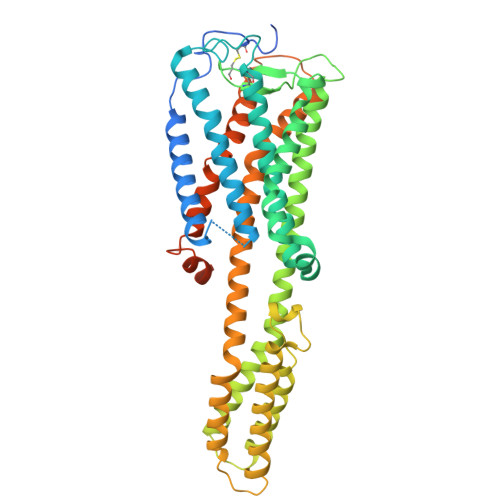

Prostaglandin D2 receptor,Soluble cytochrome b562	D [auth A]	495	Homo sapiens	Mutation(s): 6  Gene Names: PTGDR, cybC
UniProt & NIH Common Fund Data Resources
Find proteins for P0ABE7 (Escherichia coli) Explore P0ABE7  Go to UniProtKB:  P0ABE7
Find proteins for Q13258 (Homo sapiens) Explore Q13258  Go to UniProtKB:  Q13258
PHAROS:  Q13258 GTEx:  ENSG00000168229
UniProt Groups	Q13258P0ABE7

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1BIL (Subject of Investigation/LOI)	E [auth A]	[2-chloro-5-(2,6-dimethyl-4-{[(2S)-4-methyl-3,4-dihydro-2H-1,4-benzoxazin-2-yl]methoxy}benzamido)phenyl]acetic acid C27 H27 Cl N2 O5 KHJQYLXBPSJLGG-NRFANRHFSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.89 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC	4.7.0

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-03
Deposition Author(s): Davoudinasab, B., Cherezov, V., Han, G.W.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM127086

Revision History

• Version 1.0: 2025-09-03
  Type: Initial release
