9EEG | pdb_00009eeg

Room-temperature X-ray structure of HIV-1 protease in complex with GRL-11124A inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:
    0.206 (Depositor), 0.209 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.180 (DCC)
  • R-Value Observed:
    0.178 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Potent HIV‐1 protease inhibitors containing oxabicyclo octanol-derived P2-ligands: Design, synthesis, and X‐ray structural studies of inhibitor-HIV-1 protease complexes.

Ghosh, A.K.Yadav, M.Sharma, A.Johnson, M.Ghosh, A.K.Prasad, R.Amano, M.Gerlits, O.Kovalevsky, A.Mitsuya, H.

(2025) Bioorg Med Chem Lett 120: 130109-130109

  • DOI: https://doi.org/10.1016/j.bmcl.2025.130109
  • Primary Citation of Related Structures:
    9EEE, 9EEG

  • PubMed Abstract:

    We describe here the design, synthesis, and X-ray structural studies of a new class of HIV-1 protease inhibitors containing 8-oxabicyclo[3.2.1]octanol-derived P2 ligands. We investigated the functional effect of these stereochemically defined fused-poly cyclic ligands on enzyme inhibition and antiviral activity in MT-2 cells. The tricyclic core of 8-oxabicyclo[3.2.1]octan-6-ol is designed to interact with the residues in the S2 subsite of HIV-1 protease. The syntheses of the ligands were carried out using the [5+2]-cycloaddition as the key step. Several inhibitors exhibited potent enzyme inhibitory activity. High resolution room-temperature X-ray structures of inhibitor-bound HIV-1 protease were determined. These structures provided important molecular insights for further design and optimization of inhibitor potency.


  • Organizational Affiliation
    • Department of Chemistry, Purdue University, West Lafayette, IN 47907, USA; Department of Medicinal Chemistry and Molecular Pharmacology, Purdue University, West Lafayette, IN 47907, USA. Electronic address: akghosh@purdue.edu.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

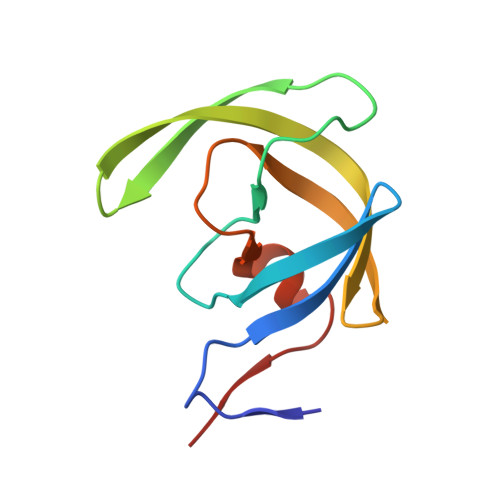

Protease
A, B
99Human immunodeficiency virus 1Mutation(s): 5
Gene Names: pol
EC: 3.4.23.16
UniProt
Find proteins for Q7SSI0 (Human immunodeficiency virus type 1)
Explore Q7SSI0
Go to UniProtKB:  Q7SSI0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7SSI0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BHV (Subject of Investigation/LOI)
Query on A1BHV

Download Ideal Coordinates CCD File
C [auth B](3S,3aS,4R,7R,8aS)-3-methylhexahydro-1H,3H-3a,7-epoxycyclohepta[c]furan-4-yl {(2S,3R)-3-hydroxy-4-[(4-methoxybenzene-1-sulfonyl)(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate
C32 H44 N2 O8 S
SQDWXBFUFOFEOW-WWCZDGDGSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
D [auth B]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:  0.206 (Depositor), 0.209 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.180 (DCC)
  • R-Value Observed: 0.178 (Depositor)
Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 60.034α = 90
b = 87.576β = 90
c = 46.315γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
CrysalisProdata reduction
CrysalisProdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI150466

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-05
    Type: Initial release
  • Version 1.1: 2025-02-12
    Changes: Database references
