9F2O | pdb_00009f2o

Structure of human carbonic anhydrase XII complexed with 3-(cyclooctylamino)-2,6-difluoro-4-((3-hydroxypropyl)sulfonyl)-5- methoxybenzenesulfonamide

PDB DOI: https://doi.org/10.2210/pdb9F2O/pdb

Classification: LYASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-04-23 Released: 2025-05-14
Deposition Author(s): Manakova, E.N., Grazulis, S., Paketuryte, V., Smirnov, A.
Funding Organization(s): iNEXT-Discovery

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.12 Å
R-Value Free:
0.164 (Depositor), 0.163 (DCC)
R-Value Work:
0.136 (Depositor), 0.141 (DCC)
R-Value Observed:
0.139 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structure of human carbonic anhydrase XII complexed with 3-(cyclooctylamino)-2,6-difluoro-4-((3-hydroxypropyl)sulfonyl)-5- methoxybenzenesulfonamide

Manakova, E.N., Grazulis, S., Paketuryte, V., Smirnov, A.

To be published.

Macromolecule Content

Total Structure Weight: 123.13 kDa
Atom Count: 10,268
Modeled Residue Count: 1,041
Deposited Residue Count: 1,052
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

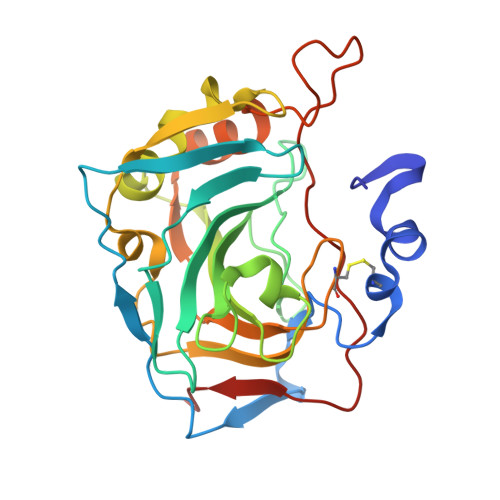

Carbonic anhydrase 12	A, B, C, D	263	Homo sapiens	Mutation(s): 0 Gene Names: CA12 EC: 4.2.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for O43570 (Homo sapiens) Explore O43570 Go to UniProtKB: O43570
PHAROS: O43570 GTEx: ENSG00000074410
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O43570
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1H89 (Subject of Investigation/LOI) Query on A1H89 Download Ideal Coordinates CCD File SDF format, chain FA [auth D] SDF format, chain J [auth A] SDF format, chain P [auth B] SDF format, chain X [auth C] MOL2 format, chain FA [auth D] MOL2 format, chain J [auth A] MOL2 format, chain P [auth B] MOL2 format, chain X [auth C] mmCIF format, chain FA [auth D] mmCIF format, chain J [auth A] mmCIF format, chain P [auth B] mmCIF format, chain X [auth C]	FA [auth D], J [auth A], P [auth B], X [auth C]	3-(cyclooctylamino)-2,6-difluoro-4-((3-hydroxypropyl)sulfonyl)-5- methoxybenzenesulfonamide C₁₈ H₂₈ F₂ N₂ O₆ S₂ DHFDRZGKBUTUPS-UHFFFAOYSA-N		Interactions Focus chain FA [auth D] Focus chain J [auth A] Focus chain P [auth B] Focus chain X [auth C] Interactions & Density Focus chain FA [auth D] Focus chain J [auth A] Focus chain P [auth B] Focus chain X [auth C]
PEG Query on PEG Download Ideal Coordinates CCD File SDF format, chain Q [auth B] MOL2 format, chain Q [auth B] mmCIF format, chain Q [auth B]	Q [auth B]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain Q [auth B] Interactions & Density Focus chain Q [auth B]
DMS Query on DMS Download Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain Y [auth C] MOL2 format, chain K [auth A] MOL2 format, chain Y [auth C] mmCIF format, chain K [auth A] mmCIF format, chain Y [auth C]	K [auth A], Y [auth C]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain Y [auth C] Interactions & Density Focus chain K [auth A] Focus chain Y [auth C]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain L [auth B] SDF format, chain R [auth C] SDF format, chain Z [auth D] MOL2 format, chain E [auth A] MOL2 format, chain L [auth B] MOL2 format, chain R [auth C] MOL2 format, chain Z [auth D] mmCIF format, chain E [auth A] mmCIF format, chain L [auth B] mmCIF format, chain R [auth C] mmCIF format, chain Z [auth D]	E [auth A], L [auth B], R [auth C], Z [auth D]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain L [auth B] Focus chain R [auth C] Focus chain Z [auth D] Interactions & Density Focus chain E [auth A] Focus chain L [auth B] Focus chain R [auth C] Focus chain Z [auth D]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain AA [auth D] SDF format, chain BA [auth D] SDF format, chain CA [auth D] SDF format, chain DA [auth D] SDF format, chain EA [auth D] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain M [auth B] SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain S [auth C] SDF format, chain T [auth C] SDF format, chain U [auth C] SDF format, chain V [auth C] SDF format, chain W [auth C] MOL2 format, chain AA [auth D] MOL2 format, chain BA [auth D] MOL2 format, chain CA [auth D] MOL2 format, chain DA [auth D] MOL2 format, chain EA [auth D] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain S [auth C] MOL2 format, chain T [auth C] MOL2 format, chain U [auth C] MOL2 format, chain V [auth C] MOL2 format, chain W [auth C] mmCIF format, chain AA [auth D] mmCIF format, chain BA [auth D] mmCIF format, chain CA [auth D] mmCIF format, chain DA [auth D] mmCIF format, chain EA [auth D] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain S [auth C] mmCIF format, chain T [auth C] mmCIF format, chain U [auth C] mmCIF format, chain V [auth C] mmCIF format, chain W [auth C]	AA [auth D] BA [auth D] CA [auth D] DA [auth D] EA [auth D] AA [auth D], BA [auth D], CA [auth D], DA [auth D], EA [auth D], F [auth A], G [auth A], H [auth A], I [auth A], M [auth B], N [auth B], O [auth B], S [auth C], T [auth C], U [auth C], V [auth C], W [auth C]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain AA [auth D] Focus chain BA [auth D] Focus chain CA [auth D] Focus chain DA [auth D] Focus chain EA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain S [auth C] Focus chain T [auth C] Focus chain U [auth C] Focus chain V [auth C] Focus chain W [auth C] Interactions & Density Focus chain AA [auth D] Focus chain BA [auth D] Focus chain CA [auth D] Focus chain DA [auth D] Focus chain EA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain S [auth C] Focus chain T [auth C] Focus chain U [auth C] Focus chain V [auth C] Focus chain W [auth C]
