9IIS | pdb_00009iis

GDP-fucose pyrophosphorylase part of FKP with a SUMO tag


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.36 Å
  • R-Value Free:
    0.254 (Depositor), 0.255 (DCC)
  • R-Value Work:
    0.203 (Depositor), 0.204 (DCC)
  • R-Value Observed:
    0.205 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structural insight into the catalytic mechanism of the bifunctional enzyme l-fucokinase/GDP-fucose pyrophosphorylase.

Lin, S.W.Ko, T.P.Chiang, H.Y.Wu, C.G.Hsu, M.F.Wang, A.H.Lin, C.H.

(2025) J Biological Chem 301: 108344-108344

  • DOI: https://doi.org/10.1016/j.jbc.2025.108344
  • Primary Citation of Related Structures:
    9IIP, 9IIS, 9IIT

  • PubMed Abstract:

    The bifunctional L-fucokinase/GDP-β-L-fucose pyrophosphorylase (FKP) from Bacteroides fragilis catalyzes the conversion from L-fucose to GDP-β-L-fucose. The reaction product, representing the activated form of L-fucose, is used by all L-fucosyltransferases to incorporate L-fucose. Herein we report the first X-ray crystal structures of FKP in complex with substrate/product, leading to the dissection of both activity domains and corresponding catalytic mechanisms. The full length (FKP-FL, 949 amino acids) exists as a tetramer in solution, but the individually prepared N-terminal domain (FKP-NTD corresponding to the sequence 1-496, also containing a SUMO tag) and C-terminal (FKP-CTD, the sequence 519-949) form a monomer and a dimer, respectively. FKP-NTD has a single α/β domain and a β-helix-containing domain, whereas FKP-CTD folds into two α/β domains and the linker comprises three α-helices. The β-L-fucose-1-phosphate (fucose-1-P) and GTP bound separately to the active sites of fucokinase (located at FKP-CTD) and pyrophosphorylase (FKP-NTD), and a third nucleotide binding site is adjacent to the β-helix (also in FKP-NTD). Furthermore, Asp762 was proposed to serve as the general base in the reaction of fucokinase, to deprotonate the C1-OH of fucose in the nucleophilic attack to γ-phosphate of ATP, resulting in the formation of fucose-1-P. At the same time, Arg592 and magnesium ion stabilize the developing negative charge in the leaving group (ADP). Subsequently, in the pyrophosphorylase-catalyzed reaction, the Lys187 side chain facilitates the nucleophilic attack of fucose-1-P toward GTP, leading to the formation of GDP-fucose.


  • Organizational Affiliation
    • Institute of Biological Chemistry, Academia Sinica, No.128, Academia Road Section 2, Nan-Kang, Taipei, 11529, Taiwan; Institute of Biochemical Sciences, National Taiwan University, Taipei, Taiwan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

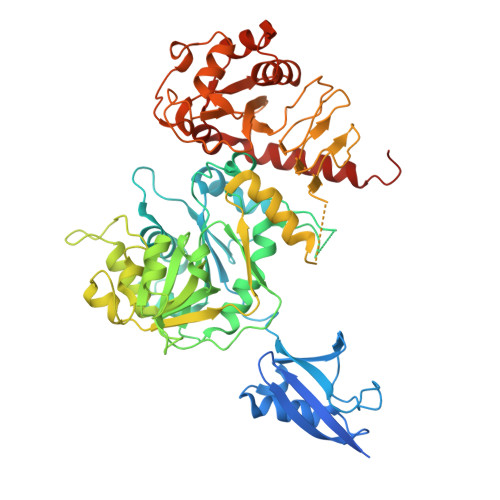

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ubiquitin-like protein SMT3,L-fucokinase/L-fucose-1-P guanylyltransferase617Saccharomyces cerevisiae S288CBacteroides fragilis
This entity is chimeric
Mutation(s): 0
Gene Names: SMT3fkp
EC: 2.7.1.52 (UniProt), 2.7.7.30 (UniProt)
UniProt
Find proteins for Q12306 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q12306
Go to UniProtKB:  Q12306
Find proteins for Q58T34 (Bacteroides fragilis)
Explore Q58T34
Go to UniProtKB:  Q58T34
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsQ12306Q58T34
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.36 Å
  • R-Value Free:  0.254 (Depositor), 0.255 (DCC)
  • R-Value Work:  0.203 (Depositor), 0.204 (DCC)
  • R-Value Observed: 0.205 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.585α = 90
b = 109.854β = 90
c = 144.107γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHENIXphasing
Blu-Icedata collection

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Academia Sinica (Taiwan)TaiwanAS-KPQ-105-TPP

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-05
    Type: Initial release
  • Version 1.1: 2025-04-09
    Changes: Database references
