9IQC | pdb_00009iqc

Monooxygenase dependent on riboflavin with dCMP and FAD

• PDB DOI: https://doi.org/10.2210/pdb9IQC/pdb

• Classification: HYDROLASE
• Organism(s): Phage #D
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-07-12 Released: 2025-07-16
• Deposition Author(s): Yu, H., Lianrong, W.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.69 Å
• R-Value Free:
  0.193 (Depositor), 0.191 (DCC)
• R-Value Work:
  0.174 (Depositor), 0.172 (DCC)
• R-Value Observed:
  0.175 (Depositor)

Starting Model: in silico

Literature

structure of XAN60475 at 1.69 Angstroms resolution

Yu, H.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 28.33 kDa
• Atom Count: 2,263
• Modeled Residue Count: 234
• Deposited Residue Count: 238
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

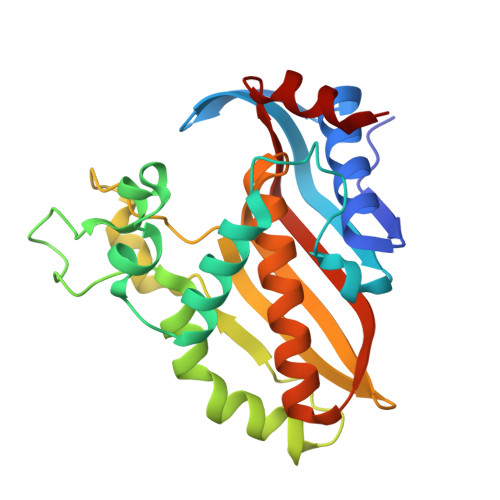

Thymidylate synthase	A	238	Phage #D	Mutation(s): 0  Gene Names: 308Ecol101PP_00194
UniProt
Find proteins for A0AA50FDD6 (Escherichia phage 308Ecol101PP) Explore A0AA50FDD6  Go to UniProtKB:  A0AA50FDD6

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
FAD (Subject of Investigation/LOI)	B [auth A]	FLAVIN-ADENINE DINUCLEOTIDE C27 H33 N9 O15 P2 VWWQXMAJTJZDQX-UYBVJOGSSA-N
DCM (Subject of Investigation/LOI)	C [auth A]	2'-DEOXYCYTIDINE-5'-MONOPHOSPHATE C9 H14 N3 O7 P NCMVOABPESMRCP-SHYZEUOFSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.69 Å
• R-Value Free:  0.193 (Depositor), 0.191 (DCC)
• R-Value Work:  0.174 (Depositor), 0.172 (DCC)
• R-Value Observed: 0.175 (Depositor)

Space Group: P 6₁ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 64.702	α = 90
b = 64.702	β = 90
c = 230.362	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
PHENIX	phasing
PROCOR	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-16
Deposition Author(s): Yu, H., Lianrong, W.

---

Funding Organization	Location	Grant Number
Not funded	China	--

Revision History

• Version 1.0: 2025-07-16
  Type: Initial release
