9KG3 | pdb_00009kg3

Alpha-hemolysin heptameric pore state derived from egg PC/Cholesterol (3:1 molar ratio) liposomes

PDB DOI: https://doi.org/10.2210/pdb9KG3/pdb
EM Map EMD-62307: EMDB EMDataResource

Classification: LIPID BINDING PROTEIN
Organism(s): Staphylococcus aureus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-11-07 Released: 2025-06-11
Deposition Author(s): Chatterjee, A., Roy, A., Dutta, S.
Funding Organization(s): Department of Biotechnology (DBT, India)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.07 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Alpha-hemolysin heptameric pore state derived from egg PC/Cholesterol (3:1 molar ratio) liposomes

Chatterjee, A., Roy, A., Dutta, S.

To be published.

Macromolecule Content

Total Structure Weight: 233.03 kDa
Atom Count: 16,424
Modeled Residue Count: 2,051
Deposited Residue Count: 2,051
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

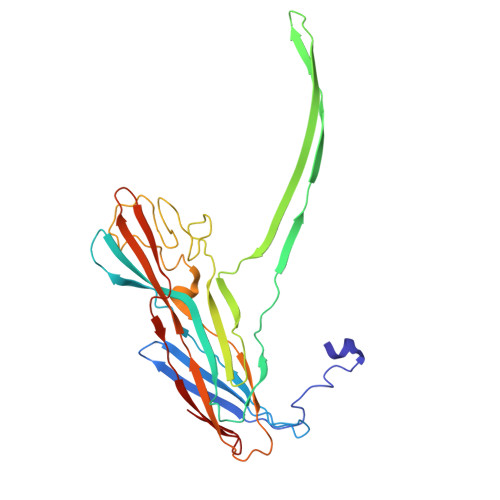

Alpha-hemolysin	A, B, C, D, E A, B, C, D, E, F, G	293	Staphylococcus aureus	Mutation(s): 0 Gene Names: hly, hla
UniProt
Find proteins for P09616 (Staphylococcus aureus) Explore P09616 Go to UniProtKB: P09616
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P09616
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.07 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-06-11

Deposition Author(s):

Funding Organization	Location	Grant Number
Department of Biotechnology (DBT, India)	India	--

Revision History (Full details and data files)

Version 1.0: 2025-06-11
Type: Initial release
Version 1.1: 2025-06-25
Changes: Data collection
