9U3O | pdb_00009u3o

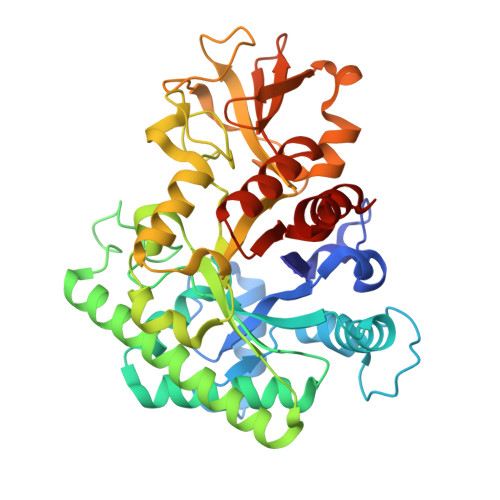

Crystal structure of Chi430 mutant E176A in the substrate complex

• PDB DOI: https://doi.org/10.2210/pdb9U3O/pdb

• Classification: HYDROLASE
• Organism(s): Vibrio parahaemolyticus
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2025-03-18 Released: 2025-08-06
• Deposition Author(s): Qipeng, C., Jinghan, Z.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.35 Å
• R-Value Free:
  0.203 (Depositor), 0.211 (DCC)
• R-Value Work:
  0.184 (Depositor), 0.194 (DCC)

Starting Model: in silico

Literature

Crystal structure of Chi430 mutant E173A in the substrate complex

Qipeng, C., Jinghan, Z.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 46.88 kDa
• Atom Count: 3,505
• Modeled Residue Count: 410
• Deposited Residue Count: 411
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
chitinase	A	411	Vibrio parahaemolyticus	Mutation(s): 1  Gene Names: HKB16_33210 EC: 3.2.1.14
UniProt
Find proteins for A0A7Y0XG39 (Vibrio parahaemolyticus) Explore A0A7Y0XG39  Go to UniProtKB:  A0A7Y0XG39

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	B	2		N/A
Glycosylation Resources
GlyTouCan:  G42666HT GlyCosmos:  G42666HT GlyGen:  G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG (Subject of Investigation/LOI)	C [auth A], D [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.35 Å
• R-Value Free:  0.203 (Depositor), 0.211 (DCC)
• R-Value Work:  0.184 (Depositor), 0.194 (DCC)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 121.676	α = 90
b = 49.858	β = 125.616
c = 92.602	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
DIALS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-06
Deposition Author(s): Qipeng, C., Jinghan, Z.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32202987

Revision History

• Version 1.0: 2025-08-06
  Type: Initial release
