9VEC | pdb_00009vec

structure of human KCNQ1-KCNE1-CaM complex

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): Yes
  • Membrane Protein: Yes  MemProtMDmpstruc

  • Deposited: 2025-06-09 Released: 2025-08-20
  • Deposition Author(s): Cui, C., Kermani, A., Cui, J., Sun, J.
  • Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI), United States - Israel Binational Science Foundation (BSF), Swedish Research Council

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Mechanisms of KCNQ1 gating modulation by KCNE1/3 for cell-specific function.

Cui, C.Zhao, L.Kermani, A.A.Du, S.Pipatpolkai, T.Jiang, M.Chittori, S.Tan, Y.Z.Shi, J.Delemotte, L.Cui, J.Sun, J.

(2025) Cell Res

  • DOI: https://doi.org/10.1038/s41422-025-01152-1
  • Primary Citation of Related Structures:
    9VEC, 9VEI, 9VEN, 9VEO, 9WD8

  • PubMed Abstract:

    KCNQ1 potassium channels are essential for physiological processes such as cardiac rhythm and intestinal chloride secretion. KCNE family subunits (KCNE1-5) associate with KCNQ1, conferring distinct properties across various tissues. KCNQ1 activation requires membrane depolarization and phosphatidylinositol 4,5-bisphosphate (PIP2) whose cellular levels are controlled by Gαq-coupled GPCR activation. While modulation of KCNQ1's voltage-dependent activation by KCNE1/3 is well-characterized, their effects on PIP2-dependent gating of KCNQ1 via GPCR signaling remain less understood. Here we resolved structures of KCNQ1-KCNE1 and reassessed the reported KCNQ1-KCNE3 structures with and without PIP2. We revealed that KCNQ1-KCNE1/3 complexes feature two PIP2-binding sites, with KCNE1/3 contributing to a previously overlooked, uncharacterized site involving residues critical for coupling voltage sensor and pore domains. Via this site, KCNE1 and KCNE3 distinctly modulate the PIP2-dependent gating, in addition to the voltage sensitivity, of KCNQ1. Consequently, KCNE3 converts KCNQ1 into a voltage-insensitive PIP2-gated channel governed by GPCR signaling to maintain ion homeostasis in non-excitable cells. KCNE1, by significantly enhancing KCNQ1's PIP2 affinity and resistance to GPCR regulation, forms predominantly voltage-gated channels with KCNQ1 for conducting the slow-delayed rectifier current in excitable cardiac cells. Our study highlights how KCNE1/3 modulates KCNQ1 gating in different cellular contexts, providing insights into tissue-specifically targeting multi-functional channels.


  • Organizational Affiliation
    • Department of Biological Sciences, National University of Singapore, Singapore, Singapore.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

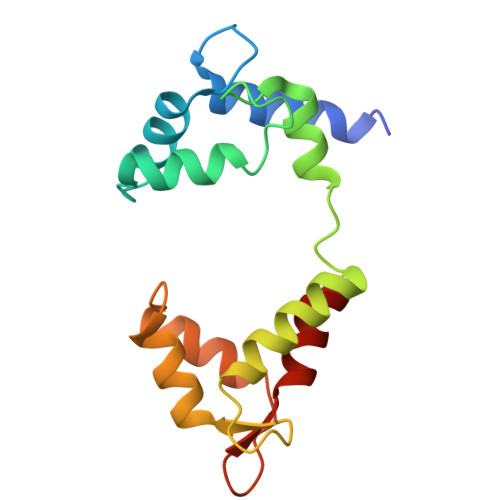

Calmodulin-1A [auth K],
D [auth B],
E,
F [auth H]
149Homo sapiensMutation(s): 0
Gene Names: CALM1CALMCAMCAM1
UniProt & NIH Common Fund Data Resources
Find proteins for P0DP23 (Homo sapiens)
Explore P0DP23
Go to UniProtKB:  P0DP23
PHAROS:  P0DP23
GTEx:  ENSG00000198668
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DP23
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Potassium voltage-gated channel subfamily E member 1B [auth I],
G [auth C],
H [auth F],
I [auth L]
129Homo sapiensMutation(s): 1
Gene Names: KCNE1
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P15382 (Homo sapiens)
Explore P15382
Go to UniProtKB:  P15382
PHAROS:  P15382
GTEx:  ENSG00000180509
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15382
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

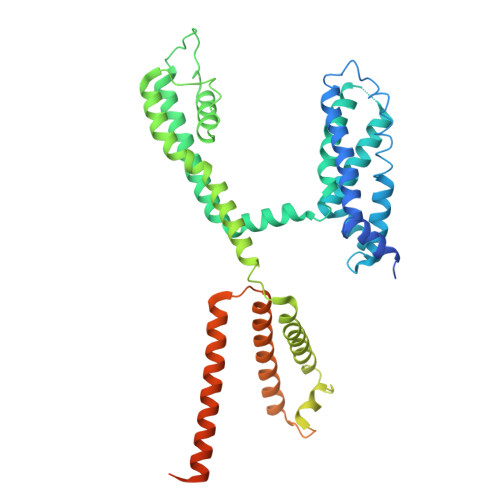

Potassium voltage-gated channel subfamily KQT member 1C [auth J],
J [auth A],
K [auth D],
L [auth G]
546Homo sapiensMutation(s): 1
Gene Names: KCNQ1KCNA8KCNA9KVLQT1
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P51787 (Homo sapiens)
Explore P51787
Go to UniProtKB:  P51787
PHAROS:  P51787
GTEx:  ENSG00000053918
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51787
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2-5419-000
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)United StatesR00HL143037
United States - Israel Binational Science Foundation (BSF)United States2019159
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)United StatesR01 HL155398
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)United StatesR01 HL166628
Swedish Research CouncilSweden2022-04305
Swedish Research CouncilSweden2022-06725

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-20
    Type: Initial release
