9WD8 | pdb_00009wd8

structure of human KCNQ1-KCNE3-CaM complex with two PIP2

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): No
  • Membrane Protein: Yes  mpstruc

  • Deposited: 2025-08-18 Released: 2025-09-03
  • Deposition Author(s): Cui, C., Sun, J.
  • Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Mechanisms of KCNQ1 gating modulation by KCNE1/3 for cell-specific function.

Cui, C.Zhao, L.Kermani, A.A.Du, S.Pipatpolkai, T.Jiang, M.Chittori, S.Tan, Y.Z.Shi, J.Delemotte, L.Cui, J.Sun, J.

(2025) Cell Res

  • DOI: https://doi.org/10.1038/s41422-025-01152-1
  • Primary Citation of Related Structures:
    9VEC, 9VEI, 9VEN, 9VEO, 9WD8

  • PubMed Abstract:

    KCNQ1 potassium channels are essential for physiological processes such as cardiac rhythm and intestinal chloride secretion. KCNE family subunits (KCNE1-5) associate with KCNQ1, conferring distinct properties across various tissues. KCNQ1 activation requires membrane depolarization and phosphatidylinositol 4,5-bisphosphate (PIP2) whose cellular levels are controlled by Gαq-coupled GPCR activation. While modulation of KCNQ1's voltage-dependent activation by KCNE1/3 is well-characterized, their effects on PIP2-dependent gating of KCNQ1 via GPCR signaling remain less understood. Here we resolved structures of KCNQ1-KCNE1 and reassessed the reported KCNQ1-KCNE3 structures with and without PIP2. We revealed that KCNQ1-KCNE1/3 complexes feature two PIP2-binding sites, with KCNE1/3 contributing to a previously overlooked, uncharacterized site involving residues critical for coupling voltage sensor and pore domains. Via this site, KCNE1 and KCNE3 distinctly modulate the PIP2-dependent gating, in addition to the voltage sensitivity, of KCNQ1. Consequently, KCNE3 converts KCNQ1 into a voltage-insensitive PIP2-gated channel governed by GPCR signaling to maintain ion homeostasis in non-excitable cells. KCNE1, by significantly enhancing KCNQ1's PIP2 affinity and resistance to GPCR regulation, forms predominantly voltage-gated channels with KCNQ1 for conducting the slow-delayed rectifier current in excitable cardiac cells. Our study highlights how KCNE1/3 modulates KCNQ1 gating in different cellular contexts, providing insights into tissue-specifically targeting multi-functional channels.


  • Organizational Affiliation
    • Department of Biological Sciences, National University of Singapore, Singapore, Singapore.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Calmodulin-1A [auth B],
C [auth E],
D [auth H],
E [auth K]
149Homo sapiensMutation(s): 0
Gene Names: CALM1CALMCAMCAM1
UniProt & NIH Common Fund Data Resources
Find proteins for P0DP23 (Homo sapiens)
Explore P0DP23
Go to UniProtKB:  P0DP23
PHAROS:  P0DP23
GTEx:  ENSG00000198668
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DP23
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

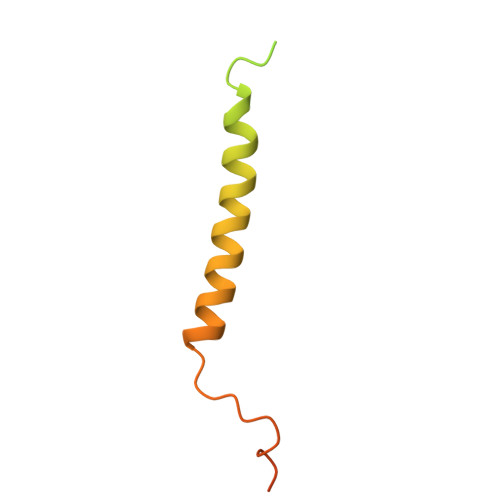

Potassium voltage-gated channel subfamily E member 3B [auth C],
J [auth F],
K [auth I],
L
106Homo sapiensMutation(s): 0
Gene Names: KCNE3
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y6H6 (Homo sapiens)
Explore Q9Y6H6
Go to UniProtKB:  Q9Y6H6
PHAROS:  Q9Y6H6
GTEx:  ENSG00000175538
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y6H6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

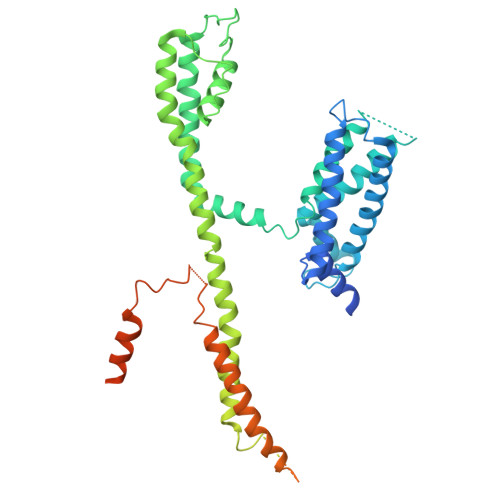

Potassium voltage-gated channel subfamily KQT member 1F [auth A],
G [auth D],
H [auth G],
I [auth J]
546Homo sapiensMutation(s): 0
Gene Names: KCNQ1KCNA8KCNA9KVLQT1
Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P51787 (Homo sapiens)
Explore P51787
Go to UniProtKB:  P51787
PHAROS:  P51787
GTEx:  ENSG00000053918
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51787
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BBG (Subject of Investigation/LOI)
Query on A1BBG

Download Ideal Coordinates CCD File
AA [auth I]
BA [auth L]
O [auth C]
V [auth A]
W [auth D]
AA [auth I],
BA [auth L],
O [auth C],
V [auth A],
W [auth D],
X [auth G],
Y [auth J],
Z [auth F]
(2R)-3-{[(S)-hydroxy{[(1R,2R,3S,4R,5R,6S)-2,3,6-trihydroxy-4,5-bis(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propane-1,2-diyl di[(9Z)-octadec-9-enoate]
C45 H85 O19 P3
IGQSAMXNWMLOOS-GGDMTQDZSA-N
CA (Subject of Investigation/LOI)
Query on CA

Download Ideal Coordinates CCD File
M [auth B]
N [auth B]
P [auth E]
Q [auth E]
R [auth H]
M [auth B],
N [auth B],
P [auth E],
Q [auth E],
R [auth H],
S [auth H],
T [auth K],
U [auth K]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)United StatesR00HL143037

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
