3A8D | pdb_00003a8d

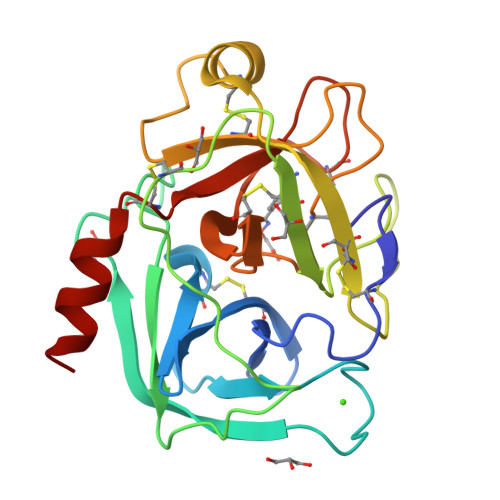

Crystal Structure of Trypsin complexed with (E)-2-(4-carbamimidoylbenzylideneaminooxy)acetic acid (under aniline-free condition)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:
    0.183 (Depositor), 0.150 (DCC)
  • R-Value Work:
    0.153 (Depositor), 0.150 (DCC)
  • R-Value Observed:
    0.155 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted O09Click on this verticalbar to view details

This is version 1.3 of the entry. See complete history


Literature

In-Crystal Chemical Ligation for Drug Discovery

Yamane, J.Ooyabu, N.Yao, M.Takemoto, H.Tanaka, I.

To be published.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cationic trypsin223Bos taurusMutation(s): 0
EC: 3.4.21.4
UniProt
Find proteins for P00760 (Bos taurus)
Explore P00760
Go to UniProtKB:  P00760
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00760
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
O09
Query on O09

Download Ideal Coordinates CCD File
H [auth A](E)-2-(4-carbamimidoylbenzylideneaminooxy)acetic acid
C10 H11 N3 O3
ZLBUXZJWFUDICQ-WLRTZDKTSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
C [auth A],
D [auth A],
E [auth A],
F [auth A],
G [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
B [auth A]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:  0.183 (Depositor), 0.150 (DCC)
  • R-Value Work:  0.153 (Depositor), 0.150 (DCC)
  • R-Value Observed: 0.155 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.06α = 90
b = 56.888β = 90
c = 66.22γ = 90
Software Package:
Software NamePurpose
LAFIREmodel building
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
LAFIREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted O09Click on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-09-29
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2023-11-01
    Changes: Data collection, Database references, Derived calculations, Refinement description
  • Version 1.3: 2024-10-16
    Changes: Structure summary
