8S5E | pdb_00008s5e

Cryo-EM structure of Arf1-decorated membrane tubules

PDB DOI: https://doi.org/10.2210/pdb8S5E/pdb
EM Map EMD-19733: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Saccharomyces cerevisiae
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-02-23 Released: 2025-01-22
Deposition Author(s): Haupt, C., Semchonok, D.A., Stubbs, M.T., Bacia, K., Desfosses, A., Kastritis, P.L., Hamdi, F.
Funding Organization(s): German Federal Ministry for Education and Research

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.10 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of Arf1-decorated membrane tubules

Haupt, C., Semchonok, D.A., Stubbs, M.T., Bacia, K., Desfosses, A.

(2024) Cell Structure

Macromolecule Content

Total Structure Weight: 147.81 kDa
Atom Count: 9,373
Modeled Residue Count: 1,141
Deposited Residue Count: 1,267
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

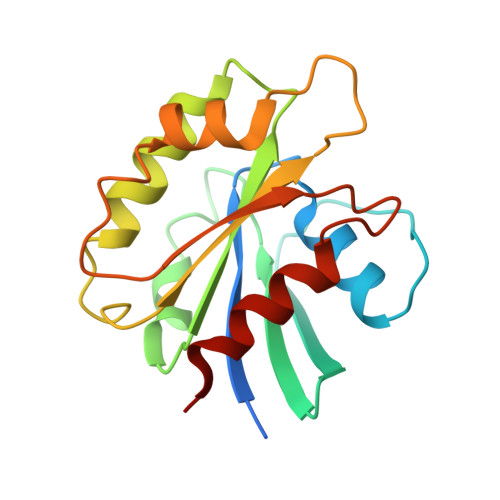

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
ADP-ribosylation factor 1	A, B, C, D, E A, B, C, D, E, F, G	181	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: ARF1, YDL192W, D1244 EC: 3.6.5.2
UniProt
Find proteins for P11076 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P11076 Go to UniProtKB: P11076
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P11076
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GSP (Subject of Investigation/LOI) Query on GSP Download Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain K [auth B] SDF format, chain M [auth C] SDF format, chain O [auth D] SDF format, chain Q [auth E] SDF format, chain S [auth F] SDF format, chain U [auth G] MOL2 format, chain I [auth A] MOL2 format, chain K [auth B] MOL2 format, chain M [auth C] MOL2 format, chain O [auth D] MOL2 format, chain Q [auth E] MOL2 format, chain S [auth F] MOL2 format, chain U [auth G] mmCIF format, chain I [auth A] mmCIF format, chain K [auth B] mmCIF format, chain M [auth C] mmCIF format, chain O [auth D] mmCIF format, chain Q [auth E] mmCIF format, chain S [auth F] mmCIF format, chain U [auth G]	I [auth A] K [auth B] M [auth C] O [auth D] Q [auth E] I [auth A], K [auth B], M [auth C], O [auth D], Q [auth E], S [auth F], U [auth G]	5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ S XOFLBQFBSOEHOG-UUOKFMHZSA-N		Interactions Focus chain I [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Focus chain U [auth G] Interactions & Density Focus chain I [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Focus chain U [auth G]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain J [auth B] SDF format, chain L [auth C] SDF format, chain N [auth D] SDF format, chain P [auth E] SDF format, chain R [auth F] SDF format, chain T [auth G] MOL2 format, chain H [auth A] MOL2 format, chain J [auth B] MOL2 format, chain L [auth C] MOL2 format, chain N [auth D] MOL2 format, chain P [auth E] MOL2 format, chain R [auth F] MOL2 format, chain T [auth G] mmCIF format, chain H [auth A] mmCIF format, chain J [auth B] mmCIF format, chain L [auth C] mmCIF format, chain N [auth D] mmCIF format, chain P [auth E] mmCIF format, chain R [auth F] mmCIF format, chain T [auth G]	H [auth A] J [auth B] L [auth C] N [auth D] P [auth E] H [auth A], J [auth B], L [auth C], N [auth D], P [auth E], R [auth F], T [auth G]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E] Focus chain R [auth F] Focus chain T [auth G] Interactions & Density Focus chain H [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E] Focus chain R [auth F] Focus chain T [auth G]
