8VV2 | pdb_00008vv2

Cryo-EM Structure of DHX36 bound to a RNA G-quadruplex derived from the cMyc G-quadruplex, Class 1

• PDB DOI: https://doi.org/10.2210/pdb8VV2/pdb
• EM Map EMD-43547: EMDB EMDataResource
• NAKB: 8VV2

• Classification: Hydrolase/RNA
• Organism(s): Bos taurus, Homo sapiens
• Expression System: Escherichia coli, synthetic construct
• Mutation(s): No


• Deposited: 2024-01-30 Released: 2025-07-30
• Deposition Author(s): Banco, M.T., Ferre-D'Amare, A.R.
• Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental

Literature

Inter-domain synergy enables both DNA and RNA G-quadruplex unwinding by the DEAH-box helicase DHX36

Banco, M.T., Paul, T., Jiang, J., Myong, S., Ferre-D'Amare, A.R.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 120.42 kDa
• Atom Count: 7,024
• Modeled Residue Count: 875
• Deposited Residue Count: 999
• Unique protein chains: 1
• Unique nucleic acid chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

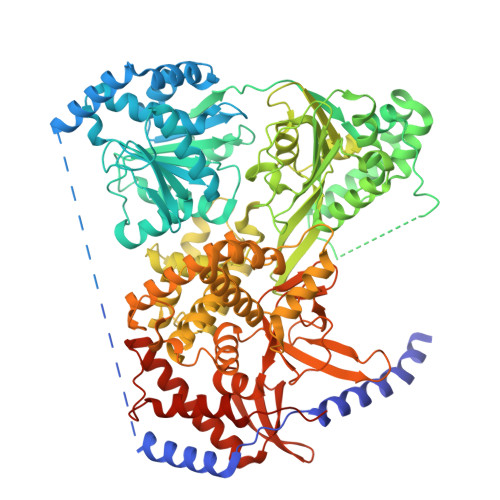

ATP-dependent DNA/RNA helicase DHX36	A	972	Bos taurus	Mutation(s): 0  Gene Names: DHX36 EC: 3.6.4.12 (PDB Primary Data), 3.6.4.13 (PDB Primary Data)
UniProt
Find proteins for Q05B79 (Bos taurus) Explore Q05B79  Go to UniProtKB:  Q05B79

Entity ID: 2
Molecule	Chains	Length	Organism	Image

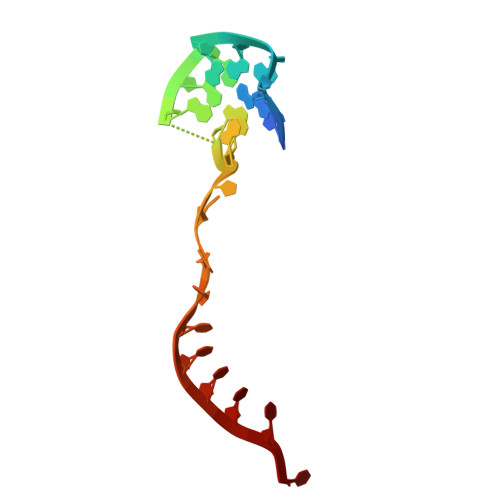

RNA (27-MER)	B [auth C]	27	Homo sapiens

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-30
Deposition Author(s): Banco, M.T., Ferre-D'Amare, A.R.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	--

Revision History

• Version 1.0: 2025-07-30
  Type: Initial release
