8W25 | pdb_00008w25

Cryo-EM structure of human tankyrase 2 SAM-PARP filament bound to compound, TDI-2804 (focused refinement map).


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.42 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

A potent and selective TNKS2 inhibitor for tumor-selective WNT suppression.

Zimmerman, J.Malone, B.F.Finkin-Groner, E.Sun, S.Liang, R.Foronda, M.Schatoff, E.M.Granowsky, E.Goswami, S.Katti, A.Leach, B.Alcorn, H.Tammela, T.Fukase, Y.Khan, T.Huggins, D.J.Ginn, J.Liverton, N.Hite, R.K.Dow, L.E.

(2025) bioRxiv

  • DOI: https://doi.org/10.1101/2025.03.04.641305
  • Primary Citation of Related Structures:
    8W23, 8W25, 8W27, 8W28, 8W2T, 8W2U

  • PubMed Abstract:

    Hyperactive WNT signaling is a potent cancer driver, but clinical translation of WNT inhibitors has been hampered by on-target toxicities. WNT signaling can be constrained through inhibition of the PARP family enzymes Tankyrase 1 (TNKS1) and Tankyrase 2 (TNKS2), however, existing TNKS inhibitors suppress WNT signaling in both tumor and healthy tissues. In this study, we show that the loss of chromosome 8p that occurs in approximately half of advanced epithelial malignancies, creates a collateral vulnerability that enables tumor-selective inhibition of Tankyrase activity. 8p loss depletes expression of TNKS1 and creates a tumor-specific dependency on the functionally redundant TNKS2 protein. Through structure-guided drug design, we identify a first-in-class TNKS2-selective inhibitor that can drive selective WNT inhibition in TNKS1-deficient oncogenic cell and organoid models. This work demonstrates a targetable vulnerability in multiple cancer types, providing a new approach to potent and selective WNT-targeted therapies.


  • Organizational Affiliation

    Sandra and Edward Meyer Cancer Center, Weill Cornell Medicine, New York, 10021.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

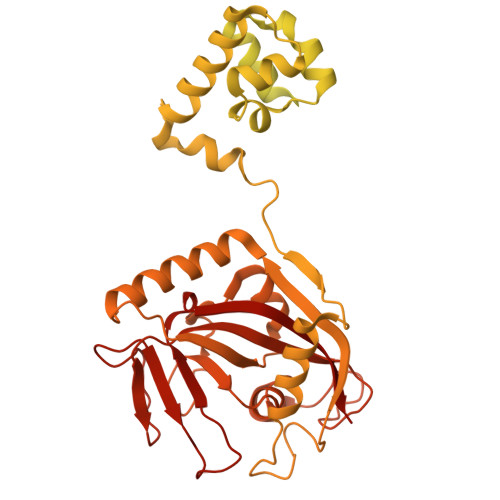

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Maltose/maltodextrin-binding periplasmic protein,Poly [ADP-ribose] polymerase tankyrase-2A [auth D],
B [auth Q]
729Homo sapiensMutation(s): 0
Gene Names: malEZ5632ECs5017TNKS2PARP5BTANK2TNKL
EC: 2.4.2.30 (PDB Primary Data), 2.4.2 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P0AEY0 (Escherichia coli O157:H7)
Explore P0AEY0
Go to UniProtKB:  P0AEY0
Find proteins for Q9H2K2 (Homo sapiens)
Explore Q9H2K2
Go to UniProtKB:  Q9H2K2
PHAROS:  Q9H2K2
GTEx:  ENSG00000107854
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsQ9H2K2P0AEY0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.42 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-09
    Type: Initial release
