8ZVL | pdb_00008zvl

human citrate synthases complexed with oxaloacetate

• PDB DOI: https://doi.org/10.2210/pdb8ZVL/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-06-11 Released: 2025-06-18
• Deposition Author(s): Yang, L.Y., Fang, Y.J.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.05 Å
• R-Value Free:
  0.258 (Depositor), 0.261 (DCC)
• R-Value Work:
  0.194 (Depositor), 0.199 (DCC)
• R-Value Observed:
  0.197 (Depositor)

Starting Model: experimental

Literature

human citrate synthases complexed with oxaloacetate

Yang, L.Y., Fang, Y.J.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly 2

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 195.44 kDa
• Atom Count: 14,280
• Modeled Residue Count: 1,738
• Deposited Residue Count: 1,740
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

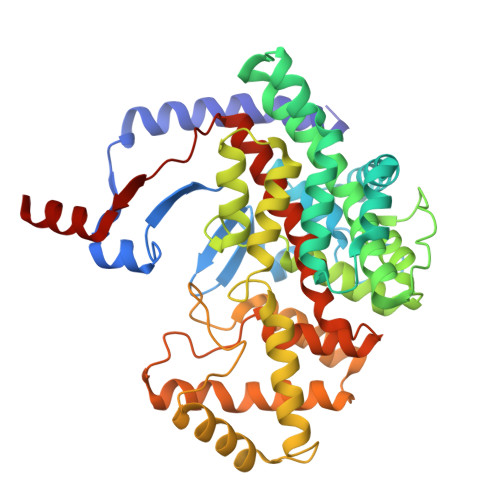

Citrate synthase, mitochondrial	A, B [auth D], C [auth B], D [auth C]	435	Homo sapiens	Mutation(s): 0  Gene Names: CS EC: 2.3.3.1
UniProt & NIH Common Fund Data Resources
Find proteins for O75390 (Homo sapiens) Explore O75390  Go to UniProtKB:  O75390
PHAROS:  O75390 GTEx:  ENSG00000062485

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
OAA (Subject of Investigation/LOI)	E [auth A], F [auth D], G [auth B]	OXALOACETATE ION C4 H3 O5 KHPXUQMNIQBQEV-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.05 Å
• R-Value Free:  0.258 (Depositor), 0.261 (DCC)
• R-Value Work:  0.194 (Depositor), 0.199 (DCC)
• R-Value Observed: 0.197 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 57.6	α = 70.75
b = 78.01	β = 81.37
c = 103.12	γ = 74.74

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
xia2	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-06-18
Deposition Author(s): Yang, L.Y., Fang, Y.J.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-06-18
  Type: Initial release
