9A3O | pdb_00009a3o

CLOCK-BMAL1 bound to a nucleosome at SHL -6.2


Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered State: No
  • Deposited Models: 1
  • Representative Model: 1

This is version 1.0 of the entry. See complete history


Literature

Cooperation between bHLH transcription factors and histones for DNA access

Michael, A.K.Stoos, L.Crosby, P.Eggers, N.Nie, X.Y.Makasheva, K.Minnich, M.Healy, K.L.Weiss, J.Kempf, G.Cavadini, S.Kater, L.Seebacher, J.Vecchia, L.Chakraborty, D.Isbel, L.Grand, R.G.Andersch, F.Fribourgh, J.L.Schuebeler, D.Zuber, J.Liu, A.C.Becker, P.B.Fierz, B.Partch, C.L.Menet, J.S.Thoma, N.H.

(2023) Nature 619: 385-393

  • DOI: https://doi.org/10.1038/s41586-023-06282-3
  • Primary Citation of Related Structures:
    8OSJ, 8OSK, 8OSL, 8OTS, 8OTT, 9A3O, 9A3P

  • PubMed Abstract:

    The basic helix-loop-helix (bHLH) family of transcription factors recognizes DNA motifs known as E-boxes (CANNTG) and includes 108 members 1 . Here we investigate how chromatinized E-boxes are engaged by two structurally diverse bHLH proteins: the proto-oncogene MYC-MAX and the circadian transcription factor CLOCK-BMAL1 (refs. 2,3 ). Both transcription factors bind to E-boxes preferentially near the nucleosomal entry-exit sites. Structural studies with engineered or native nucleosome sequences show that MYC-MAX or CLOCK-BMAL1 triggers the release of DNA from histones to gain access. Atop the H2A-H2B acidic patch 4 , the CLOCK-BMAL1 Per-Arnt-Sim (PAS) dimerization domains engage the histone octamer disc. Binding of tandem E-boxes 5-7 at endogenous DNA sequences occurs through direct interactions between two CLOCK-BMAL1 protomers and histones and is important for circadian cycling. At internal E-boxes, the MYC-MAX leucine zipper can also interact with histones H2B and H3, and its binding is indirectly enhanced by OCT4 elsewhere on the nucleosome. The nucleosomal E-box position and the type of bHLH dimerization domain jointly determine the histone contact, the affinity and the degree of competition and cooperativity with other nucleosome-bound factors.


  • Organizational Affiliation

    Friedrich Miescher Institute for Biomedical Research, Basel, Switzerland.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

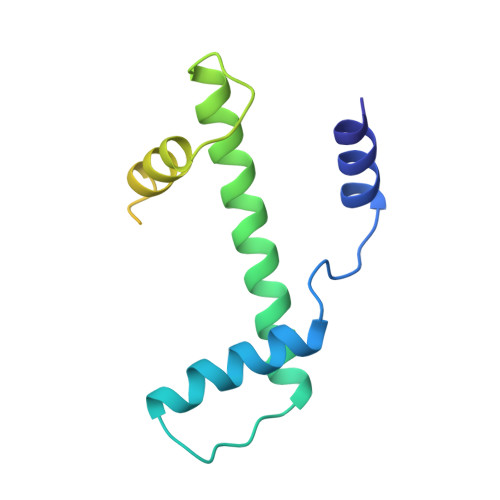

Histone H3.1
A, E
139Homo sapiensMutation(s): 0
Gene Names: H3C1H3C2H3C3H3C4H3C6H3C7H3C8H3C10H3C11H3C12
UniProt & NIH Common Fund Data Resources
Find proteins for P68431 (Homo sapiens)
Explore P68431
Go to UniProtKB:  P68431
PHAROS:  P68431
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68431
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

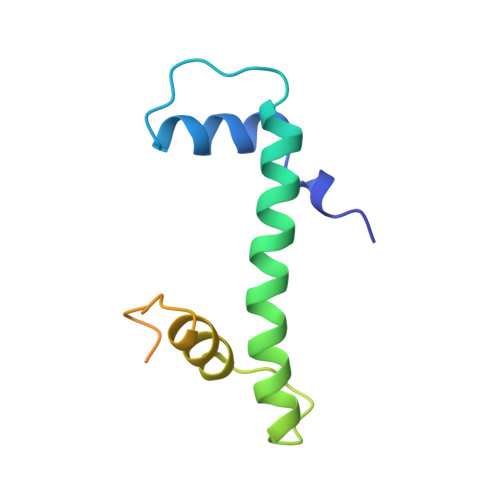

Histone H4
B, F
106Homo sapiensMutation(s): 0
Gene Names:
H4C1H4C2H4C3H4C4H4C5H4C6H4C8H4C9H4C11H4C12...
H4C1H4C2H4C3H4C4H4C5H4C6H4C8H4C9H4C11H4C12H4C13H4C14H4C15H4C16

UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens)
Explore P62805
Go to UniProtKB:  P62805
PHAROS:  P62805
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62805
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H2A
C, G
133Homo sapiensMutation(s): 0
Gene Names: H2AC4H2AC8
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens)
Explore P04908
Go to UniProtKB:  P04908
PHAROS:  P04908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04908
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

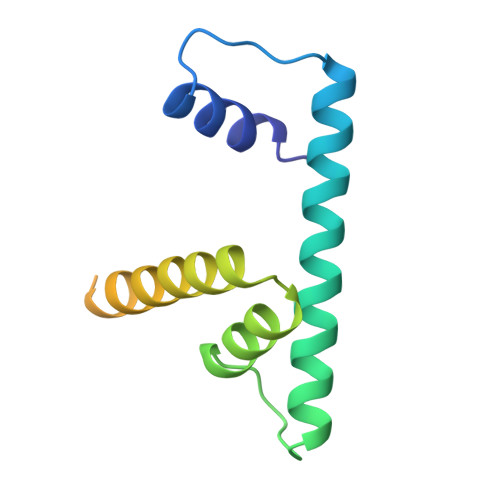

Histone H2B
D, H
128Homo sapiensMutation(s): 0
Gene Names: H2BC11
UniProt & NIH Common Fund Data Resources
Find proteins for P06899 (Homo sapiens)
Explore P06899
Go to UniProtKB:  P06899
PHAROS:  P06899
GTEx:  ENSG00000124635
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06899
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

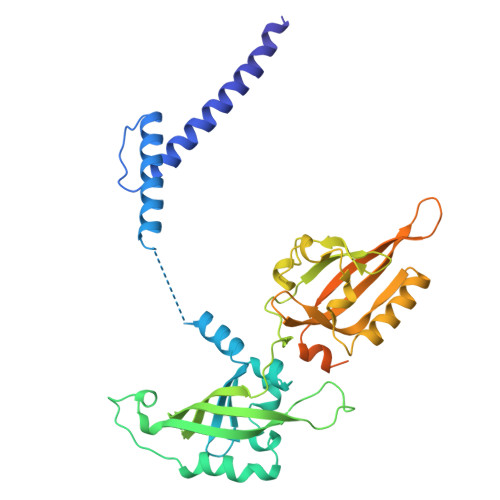

Circadian locomoter output cycles protein kaputK [auth M]375Mus musculusMutation(s): 0
Gene Names: Clock
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for O08785 (Mus musculus)
Explore O08785
Go to UniProtKB:  O08785
IMPC:  MGI:99698
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO08785
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

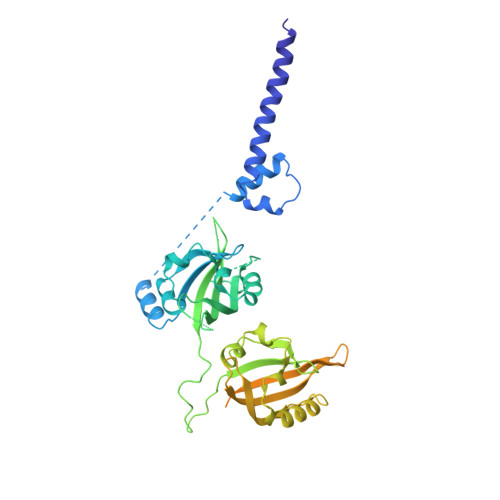

Basic helix-loop-helix ARNT-like protein 1L [auth N]384Mus musculusMutation(s): 0
Gene Names: Bmal1
UniProt
Find proteins for Q9WTL8 (Mus musculus)
Explore Q9WTL8
Go to UniProtKB:  Q9WTL8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9WTL8
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 5
MoleculeChains LengthOrganismImage

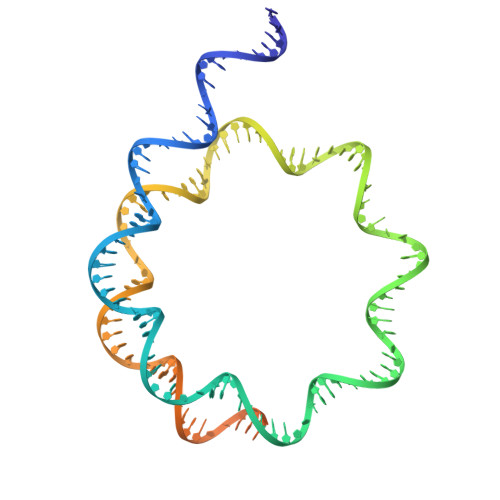

DNA (128-MER)153N/A
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 6
MoleculeChains LengthOrganismImage

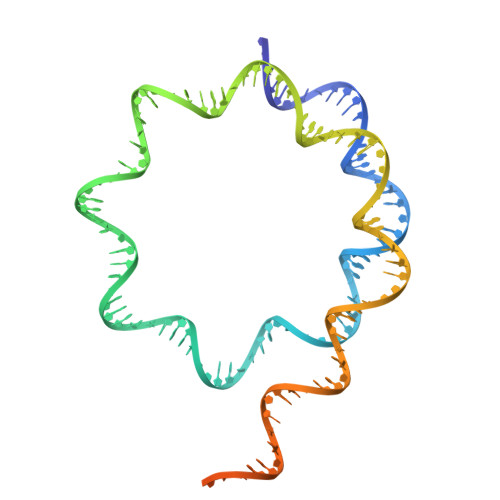

DNA (128-MER)153N/A
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered State: No
  • Deposited Models: 1
  • Representative Model: 1

Structure Validation

View Full Validation Report

View Summary Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2023-06-01
    Type: Initial release
