9BAE | pdb_00009bae

Crystal structure of Staphylococcus aureus ketol-acid reductoisomerase in complex with Mg2+, and JK-5-115


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.73 Å
  • R-Value Free:
    0.271 (Depositor), 0.272 (DCC)
  • R-Value Work:
    0.216 (Depositor), 0.216 (DCC)
  • R-Value Observed:
    0.222 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

A ketol-acid reductoisomerase inhibitor that has antituberculosis and herbicidal activity.

Guddat, L.W.Lin, X.Kurz, J.L.Li, Y.H.Wun, S.J.Lonhienne, T.McGeary, R.P.West, N.P.Schenk, G.Wang, J.G.

(2025) Chemistry : e202501158-e202501158

  • DOI: https://doi.org/10.1002/chem.202501158
  • Primary Citation of Related Structures:
    9B9P, 9BAE, 9BAG

  • PubMed Abstract:

    Ketol-acid reductoisomerase (KARI) is a target for the development of new biocidal agents. This is based on its essential role in branched chain amino acid biosynthesis in plants and microorganisms, and its absence in animals. The lack of success in developing KARI inhibitors as biocides may be because the inhibitors assessed to date compete directly with the substrate, 2-acetolactate (AL). As a result, effectiveness diminishes when AL accumulates in cells. Furthermore, as these inhibitors are slow binding, an organism could avoid growth slowdown by increasing KARI production. Here, we show a pyrimidinedione, 1f is a competitive but time-dependent inhibitor of AL and NADPH for Mycobacterium tuberculosis (Mt) KARI (Ki = 23.3 nM). A crystal structure of this compound bound to the MtKARI homolog from Staphylococcus aureus (Sa), SaKARI, illustrates this dual competition. In contrast, for Oryza sativa KARI, no time-dependent inhibition by 1f is observed, though it inhibits AL competitively (146 nM) and NADPH uncompetitively. Despite differences in inhibition properties, 1f has an MIC of 12.7 µM for MtH37Rv and inhibits Brassica campestris growth by 63% at 10 mg/mL. Therefore, KARI inhibitors that are competitive for NADPH and show no time dependent inhibition have excellent potential as biocides.


  • Organizational Affiliation

    The University if Queensland, School of Chemistry and Molecular Biosciences, Cooper Rd, 4072, Brisbane, AUSTRALIA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

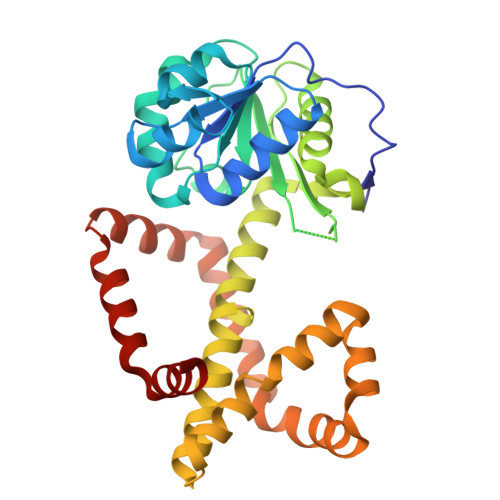

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ketol-acid reductoisomerase (NADP(+))322Staphylococcus aureusMutation(s): 0
Gene Names:
EC: 1.1.1.86
UniProt
Find proteins for Q2FWK4 (Staphylococcus aureus (strain NCTC 8325 / PS 47))
Explore Q2FWK4
Go to UniProtKB:  Q2FWK4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2FWK4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

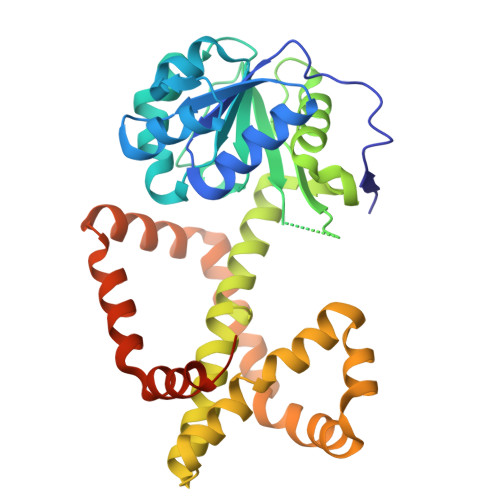

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Ketol-acid reductoisomerase (NADP(+))340Staphylococcus aureusMutation(s): 0
Gene Names:
EC: 1.1.1.86
UniProt
Find proteins for Q2FWK4 (Staphylococcus aureus (strain NCTC 8325 / PS 47))
Explore Q2FWK4
Go to UniProtKB:  Q2FWK4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2FWK4
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1AKY (Subject of Investigation/LOI)
Query on A1AKY

Download Ideal Coordinates CCD File
F [auth A],
I [auth B]
6-hydroxy-2-phenyl[1,3]thiazolo[5,4-d]pyrimidine-5,7(4H,6H)-dione
C11 H7 N3 O3 S
SVSUFKUZKAQYAR-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth A],
D [auth A],
E [auth A],
G [auth B],
H [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.73 Å
  • R-Value Free:  0.271 (Depositor), 0.272 (DCC)
  • R-Value Work:  0.216 (Depositor), 0.216 (DCC)
  • R-Value Observed: 0.222 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.031α = 90
b = 94.353β = 90
c = 96.996γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Health and Medical Research Council (NHMRC, Australia)Australia114729

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-09
    Type: Initial release
  • Version 1.1: 2025-06-04
    Changes: Database references
