9CAC | pdb_00009cac

Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure)

PDB DOI: https://doi.org/10.2210/pdb9CAC/pdb
EM Map EMD-45386: EMDB EMDataResource

Classification: GENE REGULATION
Organism(s): Homo sapiens
Mutation(s): No

Deposited: 2024-06-17 Released: 2025-06-18
Deposition Author(s): Louder, R.K., Park, G., Patel, A.B.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.43 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural divergence of H2A.Z-associated human chromatin remodelers SRCAP and TIP60

Park, G., Patel, A.B., Wu, C., Louder, R.K.

To be published.

Macromolecule Content

Total Structure Weight: 970.53 kDa
Atom Count: 40,858
Modeled Residue Count: 5,146
Deposited Residue Count: 8,762
Unique protein chains: 8

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
E1A-binding protein p400	A	3,159	Homo sapiens	Mutation(s): 0 EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for Q96L91 (Homo sapiens) Explore Q96L91 Go to UniProtKB: Q96L91
PHAROS: Q96L91 GTEx: ENSG00000183495
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q96L91
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Vacuolar protein sorting-associated protein 72 homolog	B	364	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15906 (Homo sapiens) Explore Q15906 Go to UniProtKB: Q15906
PHAROS: Q15906 GTEx: ENSG00000163159
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q15906
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

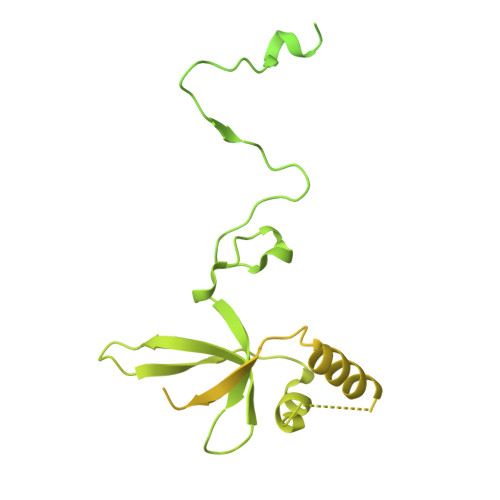

Enhancer of polycomb homolog 1	C	836	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H2F5 (Homo sapiens) Explore Q9H2F5 Go to UniProtKB: Q9H2F5
PHAROS: Q9H2F5 GTEx: ENSG00000120616
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9H2F5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

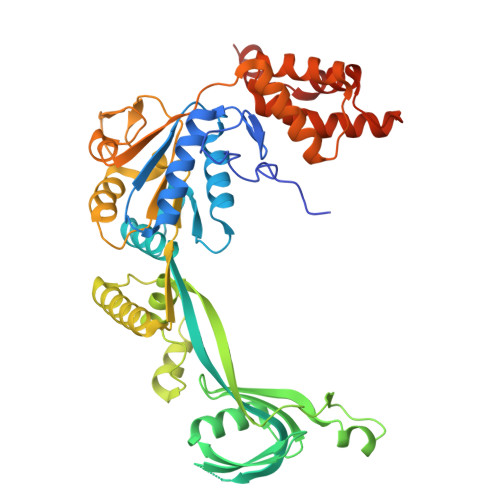

RuvB-like 1	D [auth E], F [auth G], H [auth I]	456	Homo sapiens	Mutation(s): 0 EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y265 (Homo sapiens) Explore Q9Y265 Go to UniProtKB: Q9Y265
PHAROS: Q9Y265 GTEx: ENSG00000175792
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y265
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
RuvB-like 2	E [auth F], G [auth H], I [auth J]	463	Homo sapiens	Mutation(s): 0 EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y230 (Homo sapiens) Explore Q9Y230 Go to UniProtKB: Q9Y230
PHAROS: Q9Y230 GTEx: ENSG00000183207
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y230
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Actin, cytoplasmic 1	J [auth K], K [auth L]	375	Homo sapiens	Mutation(s): 0 EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for P60709 (Homo sapiens) Explore P60709 Go to UniProtKB: P60709
PHAROS: P60709 GTEx: ENSG00000075624
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P60709
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
Actin-like protein 6A	L [auth M]	429	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O96019 (Homo sapiens) Explore O96019 Go to UniProtKB: O96019
PHAROS: O96019 GTEx: ENSG00000136518
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O96019
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

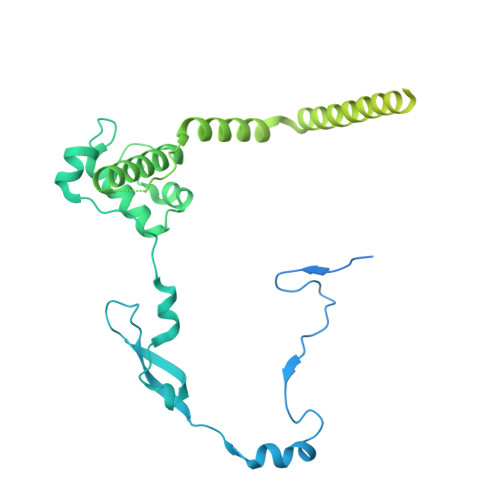

DNA methyltransferase 1-associated protein 1	M [auth N]	467	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NPF5 (Homo sapiens) Explore Q9NPF5 Go to UniProtKB: Q9NPF5
PHAROS: Q9NPF5 GTEx: ENSG00000178028
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9NPF5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP Query on ATP Download Ideal Coordinates CCD File SDF format, chain BA [auth M] MOL2 format, chain BA [auth M] mmCIF format, chain BA [auth M]	BA [auth M]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain BA [auth M] Interactions & Density Focus chain BA [auth M]
ADP Query on ADP Download Ideal Coordinates CCD File SDF format, chain R [auth G] SDF format, chain T [auth H] SDF format, chain Z [auth L] SDF format, chain X [auth J] SDF format, chain V [auth I] SDF format, chain P [auth F] SDF format, chain N [auth E] MOL2 format, chain R [auth G] MOL2 format, chain T [auth H] MOL2 format, chain Z [auth L] MOL2 format, chain X [auth J] MOL2 format, chain V [auth I] MOL2 format, chain P [auth F] MOL2 format, chain N [auth E] mmCIF format, chain R [auth G] mmCIF format, chain T [auth H] mmCIF format, chain Z [auth L] mmCIF format, chain X [auth J] mmCIF format, chain V [auth I] mmCIF format, chain P [auth F] mmCIF format, chain N [auth E]	N [auth E] P [auth F] R [auth G] T [auth H] V [auth I] N [auth E], P [auth F], R [auth G], T [auth H], V [auth I], X [auth J], Z [auth L]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain N [auth E] Focus chain P [auth F] Focus chain R [auth G] Focus chain T [auth H] Focus chain V [auth I] Focus chain X [auth J] Focus chain Z [auth L] Interactions & Density Focus chain N [auth E] Focus chain P [auth F] Focus chain R [auth G] Focus chain T [auth H] Focus chain V [auth I] Focus chain X [auth J] Focus chain Z [auth L]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain AA [auth L] SDF format, chain CA [auth M] SDF format, chain W [auth I] SDF format, chain Y [auth J] SDF format, chain U [auth H] SDF format, chain S [auth G] SDF format, chain Q [auth F] SDF format, chain O [auth E] MOL2 format, chain AA [auth L] MOL2 format, chain CA [auth M] MOL2 format, chain W [auth I] MOL2 format, chain Y [auth J] MOL2 format, chain U [auth H] MOL2 format, chain S [auth G] MOL2 format, chain Q [auth F] MOL2 format, chain O [auth E] mmCIF format, chain AA [auth L] mmCIF format, chain CA [auth M] mmCIF format, chain W [auth I] mmCIF format, chain Y [auth J] mmCIF format, chain U [auth H] mmCIF format, chain S [auth G] mmCIF format, chain Q [auth F] mmCIF format, chain O [auth E]	AA [auth L] CA [auth M] O [auth E] Q [auth F] S [auth G] AA [auth L], CA [auth M], O [auth E], Q [auth F], S [auth G], U [auth H], W [auth I], Y [auth J]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AA [auth L] Focus chain CA [auth M] Focus chain O [auth E] Focus chain Q [auth F] Focus chain S [auth G] Focus chain U [auth H] Focus chain W [auth I] Focus chain Y [auth J] Interactions & Density Focus chain AA [auth L] Focus chain CA [auth M] Focus chain O [auth E] Focus chain Q [auth F] Focus chain S [auth G] Focus chain U [auth H] Focus chain W [auth I] Focus chain Y [auth J]
