9CMK | pdb_00009cmk

Crystal structure of p110alpha-RAS binding domain (RBD) in complex with molecular glue D927

PDB DOI: https://doi.org/10.2210/pdb9CMK/pdb

Classification: SIGNALING PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-07-15 Released: 2025-07-23
Deposition Author(s): Czyzyk, D.J., Simanshu, D.K.
Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.75 Å
R-Value Free:
0.221 (Depositor), 0.220 (DCC)
R-Value Work:
0.176 (Depositor), 0.176 (DCC)
R-Value Observed:
0.178 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Molecular glues that facilitate RAS binding to PI3Kalpha promote glucose uptake without insulin

Czyzyk, D.J., Yan, W., Messing, S., Gillette, W., Esposito, D., Nissley, D.V., McCormick, F., Simanshu, D.K.

(2025) Science

DOI: https://doi.org/10.1126/science.adr9097

Macromolecule Content

Total Structure Weight: 34.34 kDa
Atom Count: 2,624
Modeled Residue Count: 269
Deposited Residue Count: 282
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

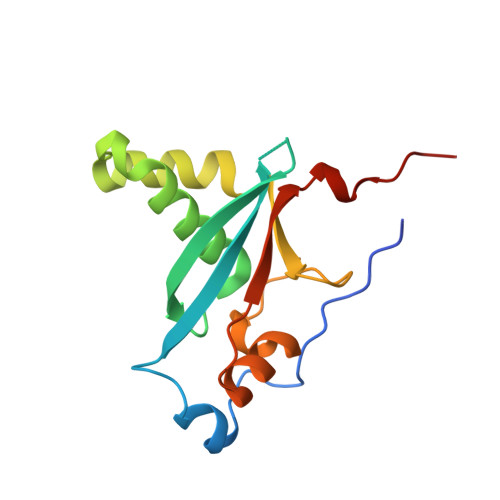

Phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit alpha isoform	A, B	141	Homo sapiens	Mutation(s): 0 Gene Names: PIK3CA EC: 2.7.1.137 (PDB Primary Data), 2.7.1.153 (PDB Primary Data), 2.7.11.1 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P42336 (Homo sapiens) Explore P42336 Go to UniProtKB: P42336
PHAROS: P42336 GTEx: ENSG00000121879
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P42336
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1ATF (Subject of Investigation/LOI) Query on A1ATF Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain H [auth B] MOL2 format, chain C [auth A] MOL2 format, chain H [auth B] mmCIF format, chain C [auth A] mmCIF format, chain H [auth B]	C [auth A], H [auth B]	2-[3-fluoro-4-({(7P)-7-[2-(2-methoxyethoxy)phenyl]thieno[2,3-d]pyridazin-4-yl}amino)phenyl]acetamide C₂₃ H₂₁ F N₄ O₃ S GWLCNGUGZNFYHI-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain H [auth B]
MPD Query on MPD Download Ideal Coordinates CCD File SDF format, chain J [auth B] MOL2 format, chain J [auth B] mmCIF format, chain J [auth B]	J [auth B]	(4S)-2-METHYL-2,4-PENTANEDIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-YFKPBYRVSA-N		Interactions Focus chain J [auth B] Interactions & Density Focus chain J [auth B]
MRD Query on MRD Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain I [auth B] MOL2 format, chain G [auth A] MOL2 format, chain I [auth B] mmCIF format, chain G [auth A] mmCIF format, chain I [auth B]	G [auth A], I [auth B]	(4R)-2-METHYLPENTANE-2,4-DIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-RXMQYKEDSA-N		Interactions Focus chain G [auth A] Focus chain I [auth B] Interactions & Density Focus chain G [auth A] Focus chain I [auth B]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A]	D [auth A], E [auth A], F [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A]
