9CP2 | pdb_00009cp2

Post-targeting aCASCADE Type IA CRISPR_Cas Surveillance Complexes

• PDB DOI: https://doi.org/10.2210/pdb9CP2/pdb
• EM Map EMD-45797: EMDB EMDataResource

• Classification: RNA BINDING PROTEIN/RNA/DNA
• Organism(s): Saccharolobus solfataricus P2, Saccharolobus solfataricus
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-07-17 Released: 2025-07-23
• Deposition Author(s): Gentry, J.K., Findlay, J.L., Lawrence, C.M.
• Funding Organization(s): National Science Foundation (NSF, United States), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.94 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico

Literature

Structures and Disassembly of Post-Targeting Type I-A CRISPR_Cas Surveillance Complexes

Gentry, J.K., Findlay, J.L., Lawrence, C.M.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A4B1 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 4-mer - A4

Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 4-mer - A4

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 192.62 kDa
• Atom Count: 11,813
• Modeled Residue Count: 1,447
• Deposited Residue Count: 1,598
• Unique protein chains: 2
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

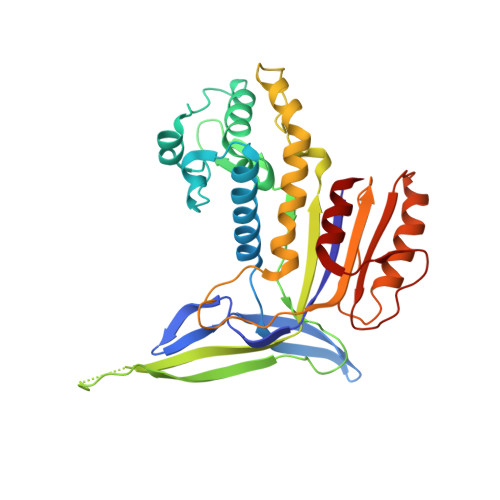

CRISPR-associated aCascade subunit Cas7/Csa2 2	A [auth B], B [auth C], C [auth D], D [auth A]	321	Saccharolobus solfataricus P2	Mutation(s): 0  Gene Names: csa2b, cas7b, SSO1442
UniProt
Find proteins for Q97Y91 (Saccharolobus solfataricus (strain ATCC 35092 / DSM 1617 / JCM 11322 / P2)) Explore Q97Y91  Go to UniProtKB:  Q97Y91

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

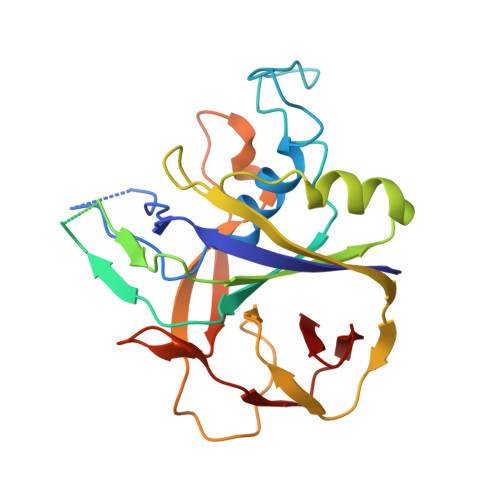

CRISPR system aCascade subunit Cas5 1	E [auth G]	240	Saccharolobus solfataricus P2	Mutation(s): 0  Gene Names: cas5a, SSO1441
UniProt
Find proteins for Q97Y92 (Saccharolobus solfataricus (strain ATCC 35092 / DSM 1617 / JCM 11322 / P2)) Explore Q97Y92  Go to UniProtKB:  Q97Y92

Entity ID: 3
Molecule	Chains	Length	Organism	Image

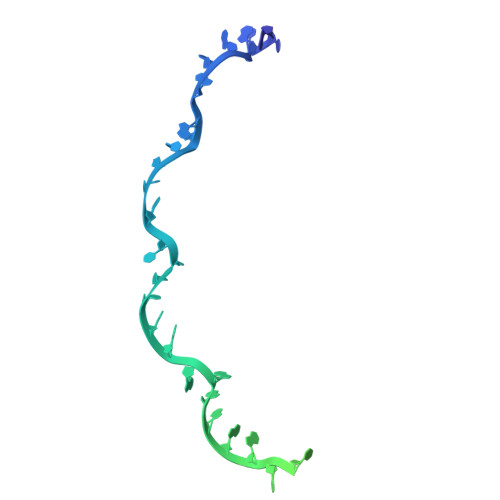

RNA (27-MER)	F [auth S]	63	Saccharolobus solfataricus

Entity ID: 4
Molecule	Chains	Length	Organism	Image
DNA (5'-D(P*TP*TP*TP*TP*CP*CP*TP*CP*GP*AP*A)-3')	G [auth M]	11	Saccharolobus solfataricus

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
TRS	H [auth B], I [auth C], J [auth S], K [auth S]	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL C4 H12 N O3 LENZDBCJOHFCAS-UHFFFAOYSA-O

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.94 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-23
Deposition Author(s): Gentry, J.K., Findlay, J.L., Lawrence, C.M.

---

Funding Organization	Location	Grant Number
National Science Foundation (NSF, United States)	United States	DBI-1828765
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	P30GM140963

Revision History

• Version 1.0: 2025-07-23
  Type: Initial release
