9DR0 | pdb_00009dr0

Hare calicivirus protruding domain


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:
    0.180 (Depositor), 0.180 (DCC)
  • R-Value Work:
    0.161 (Depositor), 0.161 (DCC)
  • R-Value Observed:
    0.162 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural analysis of a non-pathogenic hare calicivirus capsid bound to a histo-blood group antigen co-factor.

Hansman, G.S.Reese, T.Pancera, M.Rudd, P.A.Masic, V.Haselhorst, T.von Itzstein, M.

(2024) J Virol 98: e0167524-e0167524


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

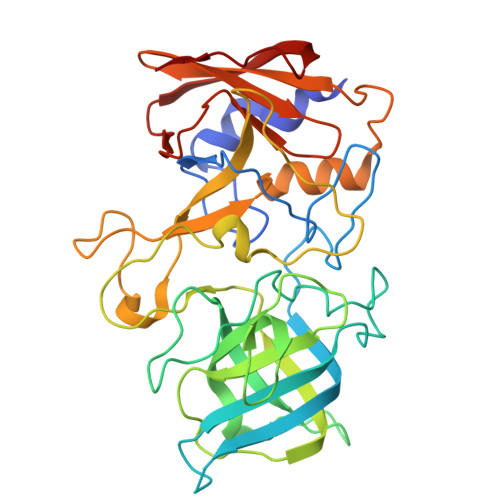

Hare calicivirus protruding domain
A, B
339Hare calicivirus Australia-1Mutation(s): 0
UniProt
Find proteins for A0A4D6I9J0 (Hare calicivirus Australia-2)
Explore A0A4D6I9J0
Go to UniProtKB:  A0A4D6I9J0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4D6I9J0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
EDO
Query on EDO

Download Ideal Coordinates CCD File
C [auth A]
D [auth A]
E [auth A]
H [auth B]
I [auth B]
C [auth A],
D [auth A],
E [auth A],
H [auth B],
I [auth B],
J [auth B]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
ACY
Query on ACY

Download Ideal Coordinates CCD File
F [auth A],
G [auth B]
ACETIC ACID
C2 H4 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:  0.180 (Depositor), 0.180 (DCC)
  • R-Value Work:  0.161 (Depositor), 0.161 (DCC)
  • R-Value Observed: 0.162 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.475α = 90
b = 82.972β = 90.89
c = 74.566γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-30
    Type: Initial release
  • Version 1.1: 2025-05-14
    Changes: Database references
