9EWD | pdb_00009ewd

DNA Polymerase Lambda I493K E529D, TMP:At Ca2+ Ground State Ternary Complex

PDB DOI: https://doi.org/10.2210/pdb9EWD/pdb

Classification: NUCLEAR PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-04-03 Released: 2025-07-23
Deposition Author(s): Nourisson, A., Haouz, A., Missoury, S., Delarue, M.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.12 Å
R-Value Free:
0.245 (Depositor), 0.242 (DCC)
R-Value Work:
0.202 (Depositor), 0.199 (DCC)
R-Value Observed:
0.204 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

DNA Polymerase Lambda I493K E529D, TTP:At Ca2+ Ground State Ternary Complex

Nourisson, A., Haouz, A., Missoury, S., Delarue, M.

To be published.

Macromolecule Content

Total Structure Weight: 43.92 kDa
Atom Count: 3,161
Modeled Residue Count: 341
Deposited Residue Count: 351
Unique protein chains: 1
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

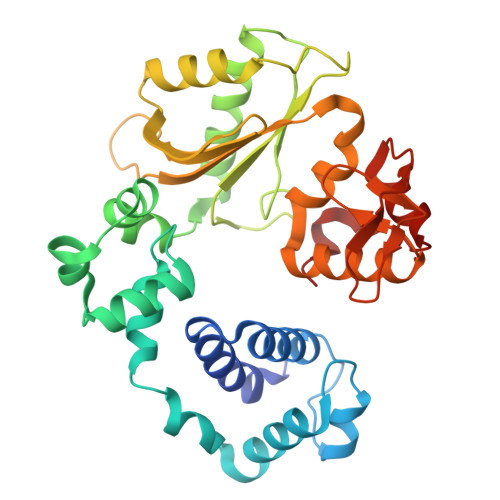

DNA polymerase lambda	A	330	Homo sapiens	Mutation(s): 2 Gene Names: POLL EC: 2.7.7.7 (PDB Primary Data), 4.2.99 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UGP5 (Homo sapiens) Explore Q9UGP5 Go to UniProtKB: Q9UGP5
PHAROS: Q9UGP5 GTEx: ENSG00000166169
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9UGP5
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image

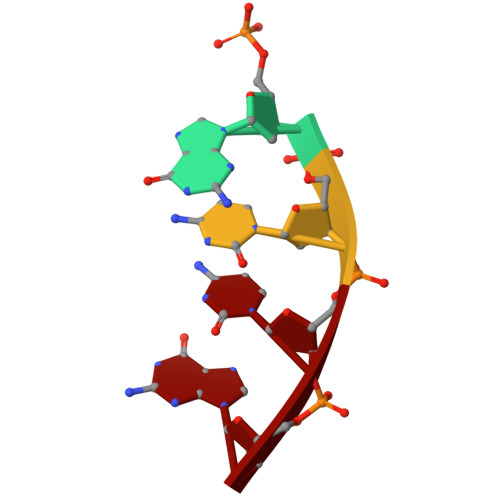

DNA primer strand downstream (5'P)	B [auth D]	4	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 3
Molecule	Chains	Length	Organism	Image

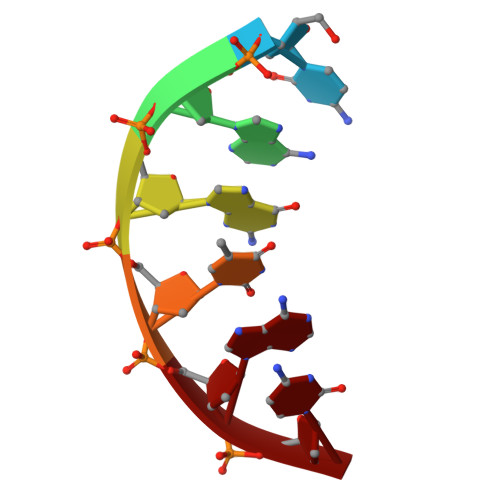

DNA primer strand upstream	C [auth P]	6	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 4
Molecule	Chains	Length	Organism	Image

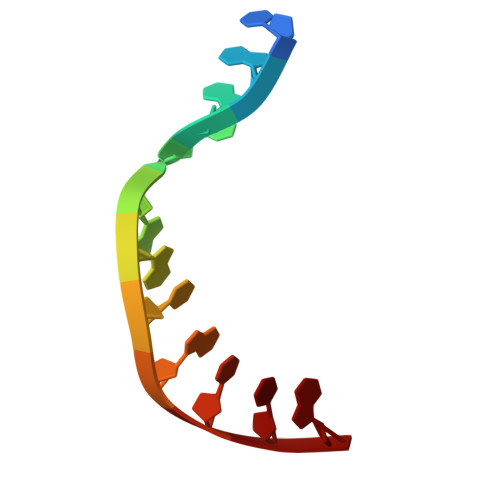

DNA template strand	D [auth T]	11	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
TMP (Subject of Investigation/LOI) Query on TMP Download Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	THYMIDINE-5'-PHOSPHATE C₁₀ H₁₅ N₂ O₈ P GYOZYWVXFNDGLU-XLPZGREQSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain J [auth A] MOL2 format, chain J [auth A] mmCIF format, chain J [auth A]	J [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Interactions & Density Focus chain J [auth A]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain G [auth A]	G [auth A], H [auth A], I [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]
CA Query on CA Download Ideal Coordinates CCD File SDF format, chain M [auth A] MOL2 format, chain M [auth A] mmCIF format, chain M [auth A]	M [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain M [auth A] Interactions & Density Focus chain M [auth A]
K Query on K Download Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A]	K [auth A], L [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain K [auth A] Focus chain L [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain N [auth A] MOL2 format, chain F [auth A] MOL2 format, chain N [auth A] mmCIF format, chain F [auth A] mmCIF format, chain N [auth A]	F [auth A], N [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain N [auth A] Interactions & Density Focus chain F [auth A] Focus chain N [auth A]
