9F3G | pdb_00009f3g

Human carbonic anhydrase XII with 3-(cyclooctylamino)-2,6-difluoro-5-((4-hydroxybutyl)amino)-4-((3-hydroxypropyl)sulfonyl)benzenesulfonamide

PDB DOI: https://doi.org/10.2210/pdb9F3G/pdb

Classification: LYASE
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-04-25 Released: 2025-05-14
Deposition Author(s): Manakova, E., Grazulis, S., Smirnov, A., Paketuryte, V.
Funding Organization(s): iNEXT-Discovery

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.21 Å
R-Value Free:
0.168 (Depositor), 0.173 (DCC)
R-Value Work:
0.137 (Depositor), 0.149 (DCC)
R-Value Observed:
0.140 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Human carbonic anhydrase XII with 3-(cyclooctylamino)-2,6-difluoro-5-((4-hydroxybutyl)amino)-4-((3-hydroxypropyl)sulfonyl)benzenesulfonamide

Manakova, E., Grazulis, S., Smirnov, A., Paketuryte, V.

To be published.

Macromolecule Content

Total Structure Weight: 123.19 kDa
Atom Count: 10,167
Modeled Residue Count: 1,045
Deposited Residue Count: 1,052
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

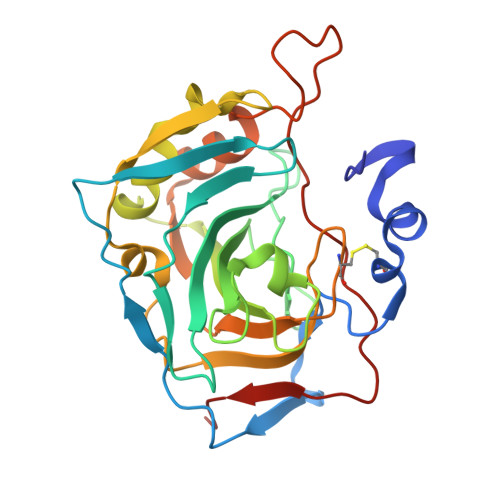

Carbonic anhydrase 12	A, B, C, D	263	Homo sapiens	Mutation(s): 0 Gene Names: CA12 EC: 4.2.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for O43570 (Homo sapiens) Explore O43570 Go to UniProtKB: O43570
PHAROS: O43570 GTEx: ENSG00000074410
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O43570
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1H91 (Subject of Investigation/LOI) Query on A1H91 Download Ideal Coordinates CCD File SDF format, chain Q [auth B] SDF format, chain V [auth C] SDF format, chain DA [auth D] SDF format, chain J [auth A] MOL2 format, chain Q [auth B] MOL2 format, chain V [auth C] MOL2 format, chain DA [auth D] MOL2 format, chain J [auth A] mmCIF format, chain Q [auth B] mmCIF format, chain V [auth C] mmCIF format, chain DA [auth D] mmCIF format, chain J [auth A]	DA [auth D], J [auth A], Q [auth B], V [auth C]	3-(cyclooctylamino)-2,6-bis(fluoranyl)-5-(4-oxidanylbutylamino)-4-[(~{E})-3-oxidanylprop-1-enyl]sulfonyl-benzenesulfonamide C₂₁ H₃₅ F₂ N₃ O₆ S₂ DACKPNNKPOPNSA-UHFFFAOYSA-N		Interactions Focus chain DA [auth D] Focus chain J [auth A] Focus chain Q [auth B] Focus chain V [auth C] Interactions & Density Focus chain DA [auth D] Focus chain J [auth A] Focus chain Q [auth B] Focus chain V [auth C]
DMS Query on DMS Download Ideal Coordinates CCD File SDF format, chain CA [auth D] SDF format, chain I [auth A] MOL2 format, chain CA [auth D] MOL2 format, chain I [auth A] mmCIF format, chain CA [auth D] mmCIF format, chain I [auth A]	CA [auth D], I [auth A]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain CA [auth D] Focus chain I [auth A] Interactions & Density Focus chain CA [auth D] Focus chain I [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain K [auth B] SDF format, chain R [auth C] SDF format, chain W [auth D] MOL2 format, chain E [auth A] MOL2 format, chain K [auth B] MOL2 format, chain R [auth C] MOL2 format, chain W [auth D] mmCIF format, chain E [auth A] mmCIF format, chain K [auth B] mmCIF format, chain R [auth C] mmCIF format, chain W [auth D]	E [auth A], K [auth B], R [auth C], W [auth D]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain K [auth B] Focus chain R [auth C] Focus chain W [auth D] Interactions & Density Focus chain E [auth A] Focus chain K [auth B] Focus chain R [auth C] Focus chain W [auth D]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain AA [auth D] SDF format, chain BA [auth D] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain P [auth B] SDF format, chain S [auth C] SDF format, chain T [auth C] SDF format, chain U [auth C] SDF format, chain X [auth D] SDF format, chain Y [auth D] SDF format, chain Z [auth D] MOL2 format, chain AA [auth D] MOL2 format, chain BA [auth D] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain P [auth B] MOL2 format, chain S [auth C] MOL2 format, chain T [auth C] MOL2 format, chain U [auth C] MOL2 format, chain X [auth D] MOL2 format, chain Y [auth D] MOL2 format, chain Z [auth D] mmCIF format, chain AA [auth D] mmCIF format, chain BA [auth D] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain P [auth B] mmCIF format, chain S [auth C] mmCIF format, chain T [auth C] mmCIF format, chain U [auth C] mmCIF format, chain X [auth D] mmCIF format, chain Y [auth D] mmCIF format, chain Z [auth D]	AA [auth D] BA [auth D] F [auth A] G [auth A] H [auth A] AA [auth D], BA [auth D], F [auth A], G [auth A], H [auth A], L [auth B], M [auth B], N [auth B], O [auth B], P [auth B], S [auth C], T [auth C], U [auth C], X [auth D], Y [auth D], Z [auth D]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain AA [auth D] Focus chain BA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain S [auth C] Focus chain T [auth C] Focus chain U [auth C] Focus chain X [auth D] Focus chain Y [auth D] Focus chain Z [auth D] Interactions & Density Focus chain AA [auth D] Focus chain BA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain S [auth C] Focus chain T [auth C] Focus chain U [auth C] Focus chain X [auth D] Focus chain Y [auth D] Focus chain Z [auth D]
