9F7Z | pdb_00009f7z

Crystal structure of human 4-1BB/TNFRSF9 in complex with the anti-4-1BB DARPin protein

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.81 Å
  • R-Value Free:
    0.291 (Depositor), 0.288 (DCC)
  • R-Value Work:
    0.241 (Depositor), 0.242 (DCC)
  • R-Value Observed:
    0.244 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history.


Literature

HUMAN TUMOR NECROSIS FACTOR RECEPTOR SUPERFAMILY MEMBER 9 IN COMPLEX WITH LIGAND DARPIN HB01

Saltarella, I., Link, A., Lamanuzzi, A., Reichen, C., Robinson, J., Altamura, C., Solimando, A.G., Ria, R., Vacca, A., Frassanito, M.A., Desaphy, J.F.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

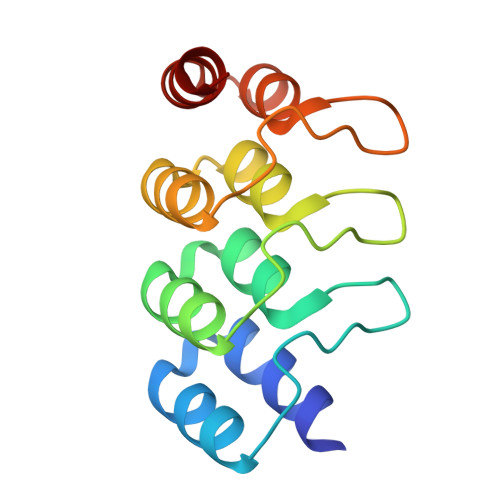

anti-4-1BB DARPin
A, C, E, G, I
A, C, E, G, I, K, M, O
126synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

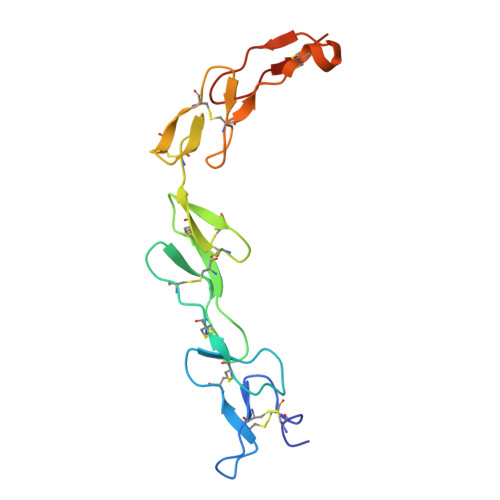

Tumor necrosis factor receptor superfamily member 9
B, D, F, H, J
B, D, F, H, J, L, N, P
138Homo sapiensMutation(s): 0
Gene Names: TNFRSF9, CD137, ILA
UniProt & NIH Common Fund Data Resources
Find proteins for Q07011 (Homo sapiens)
Explore Q07011
Go to UniProtKB:  Q07011
PHAROS:  Q07011
GTEx:  ENSG00000049249
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ07011
Glycosylation
Glycosylation Sites: 1
Go to GlyGen: Q07011-1
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-L-fucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
Q
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G95595RA
GlyCosmos:  G95595RA
GlyGen:  G95595RA
Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
R, S, T, U, W
4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G44123WW
GlyCosmos:  G44123WW
Entity ID: 5
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
V
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G61843VN
GlyCosmos:  G61843VN
GlyGen:  G61843VN
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG
Query on NAG
Download Ideal Coordinates CCD File
X [auth N]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.81 Å
  • R-Value Free:  0.291 (Depositor), 0.288 (DCC)
  • R-Value Work:  0.241 (Depositor), 0.242 (DCC)
  • R-Value Observed: 0.244 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 170.33α = 90
b = 102.469β = 91.54
c = 167.366γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-21
    Type: Initial release
