9FDT | pdb_00009fdt

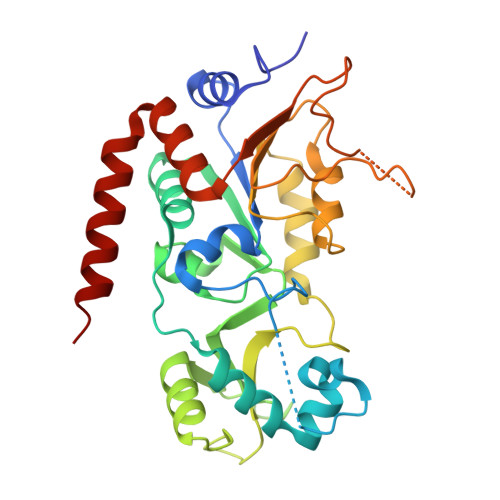

Crystal structure of human Sirt2 in complex with a pyrazole-based fragment inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:
    0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.191 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Efficient Crystallization of Apo Sirt2 for Small-Molecule Soaking and Structural Analysis of Ligand Interactions.

Friedrich, F.Schiedel, M.Swyter, S.Zhang, L.Sippl, W.Schutkowski, M.Einsle, O.Jung, M.

(2025) J Med Chem

  • DOI: https://doi.org/10.1021/acs.jmedchem.4c02896
  • Primary Citation of Related Structures:
    9FDR, 9FDS, 9FDT, 9FDU, 9FDW, 9FDX, 9FRU

  • PubMed Abstract:

    The selectivity pocket is a key binding site for inhibitors of the NAD + -dependent lysine deacylase Sirtuin 2 (Sirt2), a promising drug target in diseases like cancer. While small-molecule soaking can advance inhibitor development, the selectivity pocket is absent in available Sirt2 apo structures, and existing soaking systems like Sirt2-ADPribose (ADPR) suffer from unfavorable crystal packing that hinders ligand binding. We developed a method to rapidly generate high-quality Sirt2 apo crystals with an open selectivity pocket, suitable for high-throughput soaking. The induced-fit pocket forms upon seeding with a Sirtuin Rearranging ligand (SirReal) and is retained in the ligand-free apo structure. Screening the Maybridge Ro3-fragment library using a fluorescence polarization assay yielded three novel Sirt2-fragment-inhibitor structures. Additionally, our Sirt2 apo crystals can accommodate ligands at the acyl-lysine channel entrance and the cofactor binding site, as confirmed by binding of the peptide inhibitor KT9 and NAD + , facilitating SAR studies and inhibitor optimization.


  • Organizational Affiliation

    Institute of Pharmaceutical Sciences, University of Freiburg, Freiburg 79104, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NAD-dependent protein deacetylase sirtuin-2304Homo sapiensMutation(s): 0
Gene Names: SIRT2SIR2LSIR2L2
EC: 3.5.1 (PDB Primary Data), 2.3.1 (UniProt), 2.3.1.286 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q8IXJ6 (Homo sapiens)
Explore Q8IXJ6
Go to UniProtKB:  Q8IXJ6
PHAROS:  Q8IXJ6
GTEx:  ENSG00000068903
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IXJ6
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IBW (Subject of Investigation/LOI)
Query on A1IBW

Download Ideal Coordinates CCD File
H [auth A][2-[2-methyl-5-(trifluoromethyl)pyrazol-3-yl]phenyl]methanol
C12 H11 F3 N2 O
HLMRFDCLSUXVQC-UHFFFAOYSA-N
DMS
Query on DMS

Download Ideal Coordinates CCD File
D [auth A]DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
B [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
G [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
C [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:  0.190 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.191 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 35.817α = 90
b = 73.18β = 95.67
c = 54.959γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
autoPROCdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanySFB 992
German Research Foundation (DFG)Germany295/18-1

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-28
    Type: Initial release
  • Version 1.1: 2025-06-04
    Changes: Database references
