9K6R | pdb_00009k6r

Cryo-EM Structure of hAGO2D669A-siRNA-target (14-nt, uni-lobed)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Mechanistic insights into RNA cleavage by human Argonaute2-siRNA complex.

Li, Z.Xu, Q.Zhang, Y.Zhong, J.Zhang, T.Xue, J.Liu, S.Gao, H.Zhang, Z.Z.Z.Wu, J.Shen, E.Z.

(2025) Cell Res 35: 453-464

  • DOI: https://doi.org/10.1038/s41422-025-01114-7
  • Primary Citation of Related Structures:
    9K6P, 9K6Q, 9K6R, 9K6S, 9K6T

  • PubMed Abstract:

    In animals, AGO-clade Argonaute proteins utilize small interfering RNAs (siRNAs) as guides to recognize target with complete complementarity, resulting in target RNA cleavage that is a critical step for target silencing. These proteins feature a constricted nucleic acid-binding channel that limits base pairing between the guide and target beyond the seed region. How the AGO-siRNA complexes overcome this structural limitation and achieve efficient target cleavage remains unclear. We performed cryo-electron microscopy of human AGO-siRNA complexes bound to target RNAs of increasing lengths to examine the conformational changes associated with target recognition and cleavage. Initially, conformational transition propagates from the opening of the PAZ domain and extends through a repositioning of the PIWI-L1-N domain toward the binding channel, facilitating the capture of siRNA-target duplex. Subsequent extension of base pairing drives the downward movement of the PIWI-L1-N domain to enable catalytic activation. Finally, further base pairing toward the 3' end of siRNA destabilizes the PAZ-N domain, resulting in a "uni-lobed" architecture, which might facilitate the multi-turnover action of the AGO-siRNA enzyme complex. In contrast to PIWI-clade Argonautes, the "uni-lobed" structure of the AGO complex makes multiple contacts with the target in the central region of the siRNA-target duplex, positioning it within the catalytic site. Our findings shed light on the stepwise mechanisms by which the AGO-siRNA complex executes target RNA cleavage and offer insights into the distinct operational modalities of AGO and PIWI proteins in achieving such cleavage.


  • Organizational Affiliation
    • Fudan University, Shanghai, China.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protein argonaute-2840Homo sapiensMutation(s): 1
Gene Names: AGO2EIF2C2
EC: 3.1.26
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UKV8 (Homo sapiens)
Explore Q9UKV8
Go to UniProtKB:  Q9UKV8
PHAROS:  Q9UKV8
GTEx:  ENSG00000123908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UKV8
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage
RNA (5'-R(P*UP*AP*CP*AP*AP*GP*AP*GP*CP*CP*UP*UP*UP*CP*U)-3')15Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains LengthOrganismImage

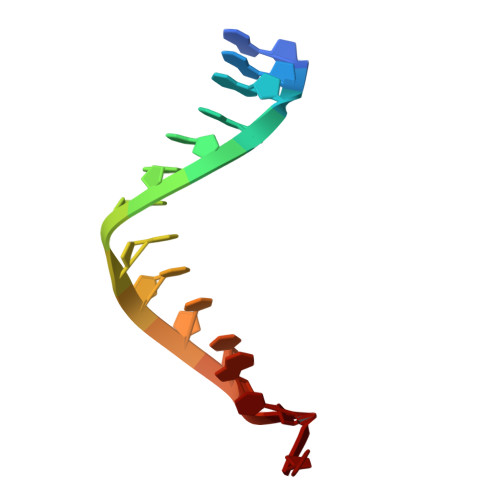

RNA (5'-R(P*GP*AP*AP*AP*GP*GP*CP*UP*CP*UP*UP*GP*UP*U)-3')14Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-25
    Type: Initial release
