9KHV | pdb_00009khv

Structure of DdmD dimer with ssDNA without nucleotide


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

A gate-clamp mechanism for ssDNA translocation by DdmD in Vibrio cholerae plasmid defense.

Li, R.Liu, Y.Gao, H.Lin, Z.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf064
  • Primary Citation of Related Structures:
    9KHV, 9KHZ, 9KI0

  • PubMed Abstract:

    The DdmDE antiplasmid system, consisting of the helicase-nuclease DdmD and the prokaryotic Argonaute (pAgo) protein DdmE, plays a crucial role in defending Vibrio cholerae against plasmids. Guided by DNA, DdmE specifically targets plasmids, disassembles the DdmD dimer, and forms a DdmD-DdmE handover complex to facilitate plasmid degradation. However, the precise ATP-dependent DNA translocation mechanism of DdmD has remained unclear. Here, we present cryo-EM structures of DdmD bound to single-stranded DNA (ssDNA) in nucleotide-free, ATPγS-bound, and ADP-bound states. These structures, combined with biochemical analysis, reveal a unique "gate-clamp" mechanism for ssDNA translocation by DdmD. Upon ATP binding, arginine finger residues R855 and R858 reorient to interact with the γ-phosphate, triggering HD2 domain movement. This shift repositions the gate residue Q781, causing a flip of the 3' flank base, which is then clamped by residue F639. After ATP hydrolysis, the arginine finger releases the nucleotide, inducing HD2 to return to its open state. This conformational change enables DdmD to translocate along ssDNA by one nucleotide in the 5' to 3' direction. This study provides new insights into the ATP-dependent translocation of DdmD and contributes to understanding the mechanistic diversity within SF2 helicases.


  • Organizational Affiliation

    College of Chemical Engineering, Fuzhou University, Fujian 350108, China.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

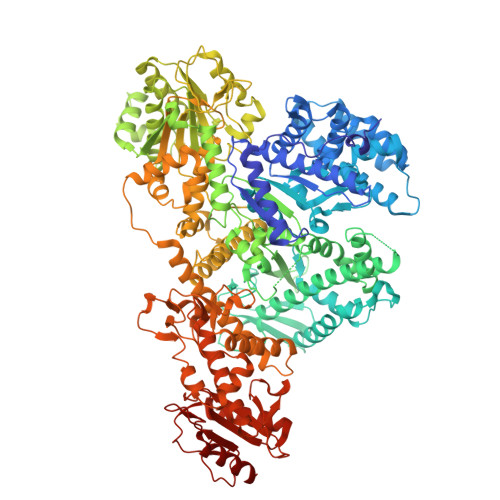

Helicase/UvrB N-terminal domain-containing proteinA,
C [auth B]
1,195Vibrio cholerae O1 biovar El Tor str. N16961Mutation(s): 0
Gene Names: VC_1771
UniProt
Find proteins for Q9KR72 (Vibrio cholerae serotype O1 (strain ATCC 39315 / El Tor Inaba N16961))
Explore Q9KR72
Go to UniProtKB:  Q9KR72
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9KR72
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage

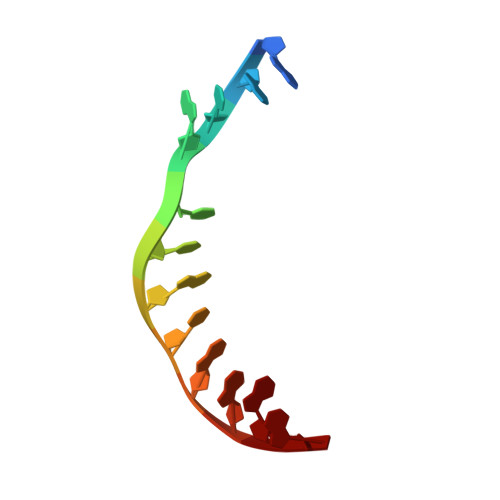

DNA (5'-D(P*AP*AP*CP*AP*TP*TP*AP*CP*AP*AP*AP*A)-3')B [auth C]12synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains LengthOrganismImage
DNA (5'-D(P*AP*CP*AP*TP*TP*AP*CP*AP*AP*AP*AP*T)-3')12synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China31971222
National Natural Science Foundation of China (NSFC)China32271258

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-19
    Type: Initial release
