9ML1 | pdb_00009ml1

D24.1M01 Fab bound to HPV16 L1 pentamer

• PDB DOI: https://doi.org/10.2210/pdb9ML1/pdb
• EM Map EMD-48344: EMDB EMDataResource

• Classification: IMMUNE SYSTEM
• Organism(s): Human papillomavirus 16, Homo sapiens
• Expression System: Escherichia coli, Homo sapiens
• Mutation(s): No


• Deposited: 2024-12-18 Released: 2025-08-20
• Deposition Author(s): Hurlburt, N.K., Singh, S., Rodarte, J.V., Pancera, M.
• Funding Organization(s): Other private

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

HPV16 neutralizing monoclonal antibodies show evidence for common developmental pathways and public epitopes

Carter, J.J., Hurlburt, N.K.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C5  (Explore in 3D)
Global Stoichiometry: Hetero 15-mer - A5B5C5 Pseudo Symmetry: Cyclic - C5  (Explore in 3D)
Pseudo Stoichiometry: Hetero 15-mer - A10B5

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 479.47 kDa
• Atom Count: 25,300
• Modeled Residue Count: 3,255
• Deposited Residue Count: 4,390
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

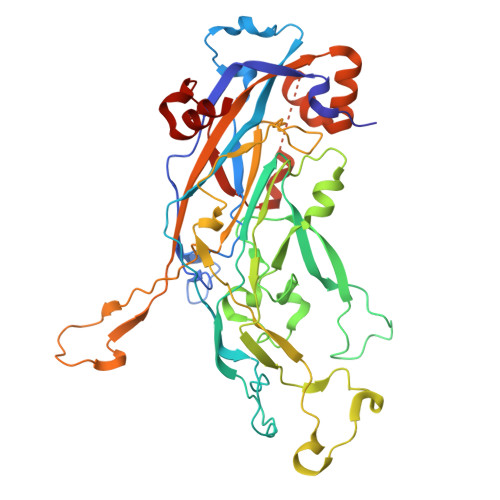

Major capsid protein L1	A, B, C, D, E	426	Human papillomavirus 16	Mutation(s): 0  Gene Names: L1
UniProt
Find proteins for J3SRV0 (Human papillomavirus type 16) Explore J3SRV0  Go to UniProtKB:  J3SRV0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
D24.1M01 Heavy Chain	F [auth H], H [auth M], J [auth O], L [auth Q], N [auth S]	235	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

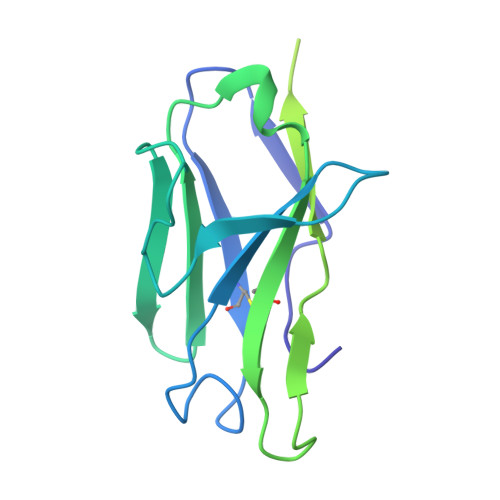

D24.1M01 Light Chain	G [auth L], I [auth N], K [auth P], M [auth R], O [auth T]	217	Homo sapiens	Mutation(s): 0

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-20
Deposition Author(s): Hurlburt, N.K., Singh, S., Rodarte, J.V., Pancera, M.

---

Funding Organization	Location	Grant Number
Other private	United States	--

Revision History

• Version 1.0: 2025-08-20
  Type: Initial release
