9MRE | pdb_00009mre

From DNA-Encoded Library Screening to AM-9747 - an MTA-Cooperative PRMT5 Inhibitor with Potent Oral in vivo Efficacy


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:
    0.241 (Depositor), 0.246 (DCC)
  • R-Value Work:
    0.202 (Depositor), 0.211 (DCC)
  • R-Value Observed:
    0.204 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

From DNA-Encoded Library Screening to AM-9747 : An MTA-Cooperative PRMT5 Inhibitor with Potent Oral In Vivo Efficacy.

Sarvary, I.Vestergaard, M.Moretti, L.Andersson, J.Peiro Cadahia, J.Cowland, S.Flagstad, T.Franch, T.Gouliaev, A.Husemoen, G.Jacso, T.Kronborg, T.Kuropatnicka, A.Nadali, A.Madsen, M.Nielsen, S.R.Pii, D.Ryborg, S.R.Soede, C.Allen, J.R.Bourbeau, M.Li, K.Liu, Q.Lo, M.C.Madoux, F.Mardirossian, N.Moriguchi, J.Ngo, R.Peng, C.C.Pettus, L.Tamayo, N.Wang, P.Kapoor, R.Belmontes, B.Caenepeel, S.Hughes, P.Liu, S.Slemmons, K.K.Yang, Y.Xie, F.Ghimire-Rijal, S.Mukund, S.Glad, S.

(2025) J Med Chem 68: 6534-6557

  • DOI: https://doi.org/10.1021/acs.jmedchem.4c03101
  • Primary Citation of Related Structures:
    9MRE

  • PubMed Abstract:

    Inhibition of the methyltransferase enzyme PRMT5 by MTA accumulation is a vulnerability of MTAP-deleted cancers. Herein, we report the discovery and optimization of a quinolin-2-amine DEL hit that cooperatively binds PRMT5:MEP50 and MTA to generate a catalytically inhibited ternary complex. X-ray crystallography confirms quinolin-2-amine binding of PRMT5 glutamate-444, while simultaneously exhibiting a hydrophobic interaction with MTA. Lead optimization produced AM-9747 , which selectively inhibits PRMT5-directed symmetric dimethylation of arginine residues of proteins, leading to a potent reduction of cell viability in MTAP-del cells compared to MTAP-WT cells. Once-daily oral dosing of AM-9747 in mouse xenografts is well tolerated, displaying a robust and dose-dependent inhibition of symmetric dimethylation of arginine in MTAP-del tumor-xenografts and significant concomitant tumor growth inhibition without any significant effect on MTAP-WT tumor xenografts.


  • Organizational Affiliation

    Amgen Research, Amgen Inc, Ro̷nnegade 8, DK-2100 Copenhagen, Denmark.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

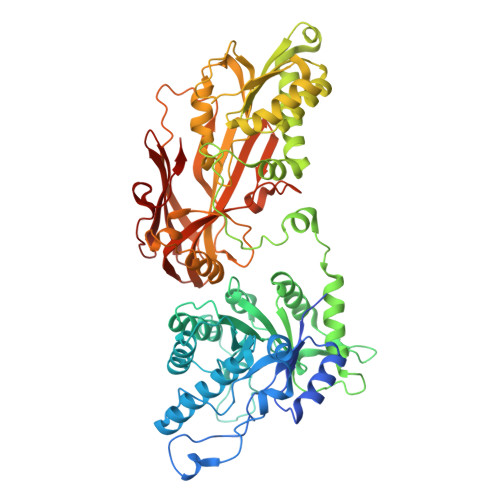

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protein arginine N-methyltransferase 5650Homo sapiensMutation(s): 0
Gene Names: PRMT5HRMT1L5IBP72JBP1SKB1
EC: 2.1.1.320
UniProt & NIH Common Fund Data Resources
Find proteins for O14744 (Homo sapiens)
Explore O14744
Go to UniProtKB:  O14744
PHAROS:  O14744
GTEx:  ENSG00000100462
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO14744
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

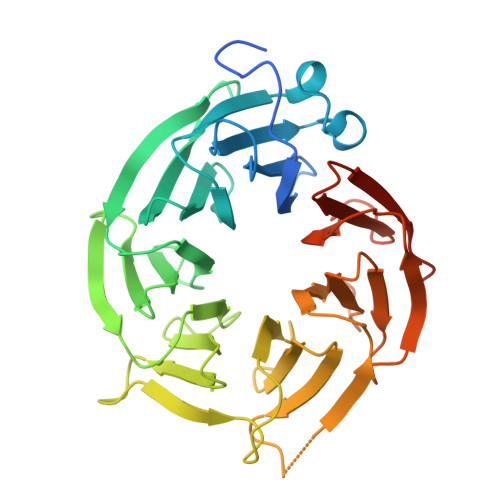

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Methylosome protein 50344Homo sapiensMutation(s): 0
Gene Names: WDR77MEP50WD45HKMT1069Nbla10071
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BQA1 (Homo sapiens)
Explore Q9BQA1
Go to UniProtKB:  Q9BQA1
PHAROS:  Q9BQA1
GTEx:  ENSG00000116455
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BQA1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BQW (Subject of Investigation/LOI)
Query on A1BQW

Download Ideal Coordinates CCD File
C [auth A]2-amino-3-methyl-N-[(1R)-1-(pyrimidin-2-yl)ethyl]-N-{[5-(trifluoromethyl)pyridin-2-yl]methyl}quinoline-6-carboxamide
C24 H21 F3 N6 O
QRZCNKOBDDQUAP-OAHLLOKOSA-N
MTA
Query on MTA

Download Ideal Coordinates CCD File
D [auth A]5'-DEOXY-5'-METHYLTHIOADENOSINE
C11 H15 N5 O3 S
WUUGFSXJNOTRMR-IOSLPCCCSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
H [auth A],
K [auth A],
N [auth B]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
G [auth A],
I [auth A],
M [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
DMS
Query on DMS

Download Ideal Coordinates CCD File
J [auth A],
L [auth A],
O [auth B]
DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:  0.241 (Depositor), 0.246 (DCC)
  • R-Value Work:  0.202 (Depositor), 0.211 (DCC)
  • R-Value Observed: 0.204 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 104.081α = 90
b = 138.135β = 90
c = 179.028γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-26
    Type: Initial release
  • Version 1.1: 2025-04-02
    Changes: Database references
