9MVM | pdb_00009mvm

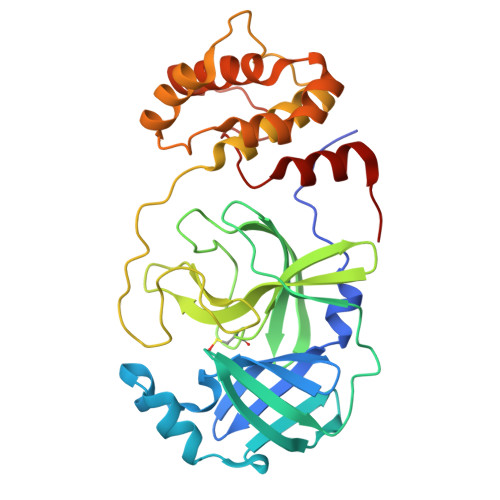

Crystal Structure of SARS-CoV-2 Main Protease (Mpro)in Complex with Inhibitor AVI-3318


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:
    0.244 (Depositor), 0.243 (DCC)
  • R-Value Work:
    0.199 (Depositor), 0.199 (DCC)
  • R-Value Observed:
    0.201 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structure-based discovery of highly bioavailable, covalent, broad-spectrum coronavirus M Pro inhibitors with potent in vivo efficacy.

Detomasi, T.C.Degotte, G.Huang, S.Suryawanshi, R.K.Diallo, A.Lizzadro, L.Zapatero-Belinchon, F.J.Taha, T.Y.Li, J.Richards, A.L.Hantz, E.R.Alam, Z.Montano, M.McCavitt-Malvido, M.Gumpena, R.Partridge, J.R.Correy, G.J.Matsui, Y.Charvat, A.F.Glenn, I.S.Rosecrans, J.Revalde, J.L.Anderson, D.Hultquist, J.F.Arkin, M.R.Neitz, R.J.Swaney, D.L.Krogan, N.J.Shoichet, B.K.Verba, K.A.Ott, M.Renslo, A.R.Craik, C.S.

(2025) Sci Adv 11: eadt7836-eadt7836

  • DOI: https://doi.org/10.1126/sciadv.adt7836
  • Primary Citation of Related Structures:
    9MVM, 9MVO, 9MVP, 9MVQ

  • PubMed Abstract:

    The main protease (M Pro ) of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is a validated drug target. Starting with a lead-like dihydrouracil chemotype identified in a large-library docking campaign, we improved M Pro inhibition >1000-fold by engaging additional M Pro subsites and using a latent electrophile to engage Cys 145 . Advanced leads from this series show pan-coronavirus antiviral activity, low clearance in mice, and for AVI-4773 , a rapid reduction in viral titers >1,000,000 after just three doses. Both compounds are well distributed in mouse tissues, including brain, where concentrations >1000× the 90% effective concentration are observed 8 hours after oral dosing for AVI-4773 . AVI-4516 shows minimal inhibition of major cytochrome P450s and human proteases. AVI-4516 also exhibits synergy with the RNA-dependent RNA polymerase inhibitor, molnupiravir, in cellular infection models. Related analogs strongly inhibit nirmatrelvir-resistant M Pro mutant virus. The properties of this chemotype are differentiated from existing clinical and preclinical M Pro inhibitors and will advance therapeutic development against emerging SARS-CoV-2 variants and other coronaviruses.


  • Organizational Affiliation

    Department of Pharmaceutical Chemistry, University of California, San Francisco, San Francisco, CA, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Replicase polyprotein 1ab314Severe acute respiratory syndrome coronavirus 2Mutation(s): 0
Gene Names: rep1a-1b
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTD1
Go to UniProtKB:  P0DTD1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTD1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1BTM (Subject of Investigation/LOI)
Query on A1BTM

Download Ideal Coordinates CCD File
B [auth A]1-[(4-chlorothiophen-2-yl)methyl]-3-[(2-oxo-1,2-dihydropyridin-3-yl)methyl]-1,3-diazinane-2,4-dione
C15 H14 Cl N3 O3 S
CFFQNGKRYYJCIS-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
CSO
Query on CSO
A
L-PEPTIDE LINKINGC3 H7 N O3 SCYS
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.96 Å
  • R-Value Free:  0.244 (Depositor), 0.243 (DCC)
  • R-Value Work:  0.199 (Depositor), 0.199 (DCC)
  • R-Value Observed: 0.201 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 115.735α = 90
b = 53.829β = 101.03
c = 45.277γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesU19 AI171110

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
