9PCB | pdb_00009pcb

Structure of Synaptic Vesicle Protein 2A Bound to UCB-J


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.42 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Mechanisms underlying allosteric modulation of antiseizure medication binding to synaptic vesicle protein 2A (SV2A).

Mittal, A.Martin, M.F.Provins, L.Hall, A.Ledecq, M.Wolff, C.Gillard, M.Horanyi, P.S.Coleman, J.A.

(2025) Proc Natl Acad Sci U S A 122: e2510239122-e2510239122

  • DOI: https://doi.org/10.1073/pnas.2510239122
  • Primary Citation of Related Structures:
    9NTC, 9PC9, 9PCB

  • PubMed Abstract:

    Brivaracetam (BRV) and levetiracetam (LEV) are antiseizure medications (ASMs); UCB-J is a PET tracer targeting synaptic vesicle protein 2A (SV2A); UCB7361 is closely related to padsevonil, an experimental anticonvulsant; while UCB1244283 acts as an allosteric modulator for BRV and LEV binding but not for these other ligands. The SV2A-BRV-UCB1244283 structure reveals how UCB1244283 allosterically enhances BRV binding by occupying an allosteric site near the primary binding site, preventing BRV dissociation. This allosteric site, formed by hydrophobic and uncharged residues, is an uncharacterized small-molecule binding site in SV2A. Structural analysis and mutagenesis demonstrate that an allosteric network between the primary and allosteric sites governs high-affinity ASM binding. Our studies suggest that UCB1244283 selectively binds SV2A over SV2B and SV2C, with specific mutations disrupting binding. Structures of SV2A-UCB-J and SV2A-UCB7361 show that UCB1244283 binding is only possible when the primary site ligand does not overlap with the allosteric site, and that repositioning of Ser601, Thr605, and Leu655 is critical for allosteric ligand binding. Structural comparison of multiple SV2A complexes reveals that primary site occupancy shapes the conformation of the lumenal half of the transmembrane domain, influencing how UCB1244283 binds via a connected network that differentially stabilizes TM1 in either an open or closed conformation and repositions key allosteric and primary site residues. These insights provide a foundation for developing therapeutics targeting the allosteric site and modulating SV2A function.


  • Organizational Affiliation
    • Department of Structural Biology, University of Pittsburgh, Pittsburgh, PA 15213.

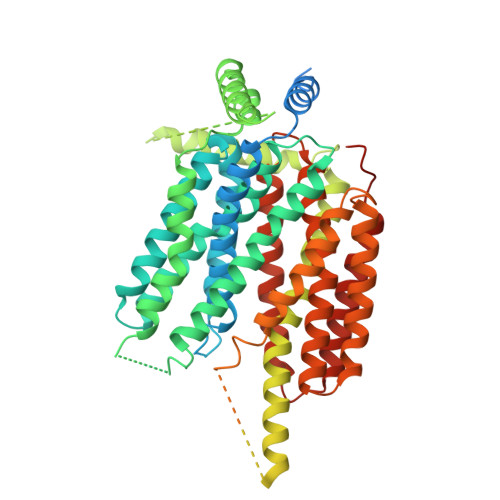

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Synaptic vesicle glycoprotein 2A686Homo sapiensMutation(s): 0
Gene Names: SV2AKIAA0736PSEC0174
UniProt & NIH Common Fund Data Resources
Find proteins for Q7L0J3 (Homo sapiens)
Explore Q7L0J3
Go to UniProtKB:  Q7L0J3
PHAROS:  Q7L0J3
GTEx:  ENSG00000159164
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7L0J3
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1CCA (Subject of Investigation/LOI)
Query on A1CCA

Download Ideal Coordinates CCD File
B [auth A](4R)-1-[(3-methylpyridin-4-yl)methyl]-4-(3,4,5-trifluorophenyl)pyrrolidin-2-one
C17 H15 F3 N2 O
RFSDYRVOGWHOFT-ZDUSSCGKSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.42 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX1.20.1-4487

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Brain & Behavior Research FoundationUnited States30153

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
  • Version 1.1: 2025-10-01
    Changes: Data collection, Database references
