9RCR | pdb_00009rcr

1,2-propanediol dehydratase with 0.1 % 1,2-propanediol additive

• PDB DOI: https://doi.org/10.2210/pdb9RCR/pdb

• Classification: LYASE
• Organism(s): Raoultella planticola
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-05-29 Released: 2025-06-11
• Deposition Author(s): Kalnins, G., Estere, M.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:
  0.318 (Depositor), 0.313 (DCC)
• R-Value Work:
  0.263 (Depositor), 0.258 (DCC)

Starting Model: in silico

Literature

1,2-propanediol dehydratase with 0.1 % 1,2-propanediol additive

Kalnins, G., Estere, M.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly 2

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 366.58 kDa
• Atom Count: 25,148
• Modeled Residue Count: 3,170
• Deposited Residue Count: 3,264
• Unique protein chains: 1

Macromolecules

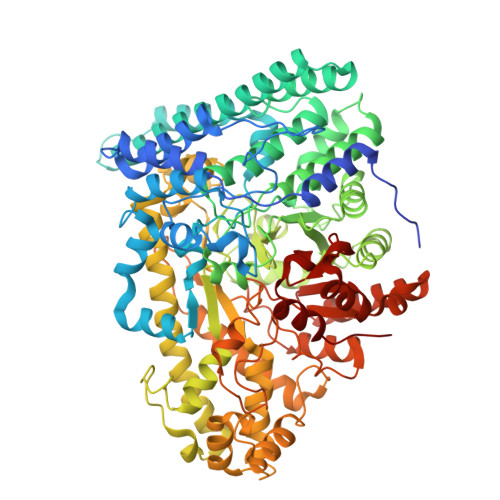

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Glycyl radical protein	A, B, C, D	816	Raoultella planticola	Mutation(s): 0  Gene Names: I8Y23_000693
UniProt
Find proteins for A0AAN5KVK2 (Raoultella planticola) Explore A0AAN5KVK2  Go to UniProtKB:  A0AAN5KVK2

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PGR (Subject of Investigation/LOI)	E [auth A], F [auth B], G [auth C], H [auth D]	R-1,2-PROPANEDIOL C3 H8 O2 DNIAPMSPPWPWGF-GSVOUGTGSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:  0.318 (Depositor), 0.313 (DCC)
• R-Value Work:  0.263 (Depositor), 0.258 (DCC)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 80.89	α = 90
b = 199.973	β = 106.323
c = 118.377	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
Aimless	data scaling
MOLREP	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-06-11
Deposition Author(s): Kalnins, G., Estere, M.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-06-11
  Type: Initial release
