9IGR | pdb_00009igr

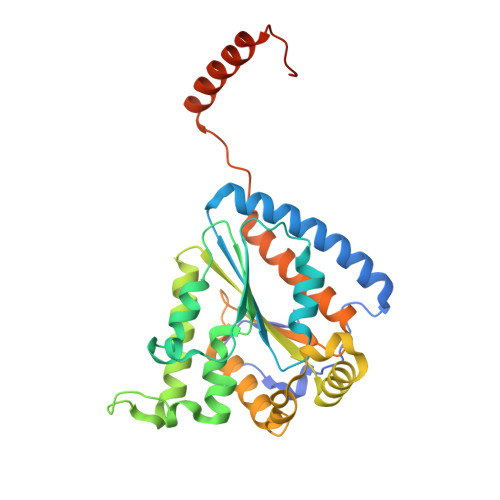

Crystal structure of PPK2 class III from Erysipelotrichaceae bacterium in complex with polyphosphate


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.31 Å
  • R-Value Free:
    0.213 (Depositor), 0.213 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.176 (DCC)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structure-guided engineering of a polyphosphate kinase 2 class III from an Erysipelotrichaceae bacterium to produce base-modified purine nucleotides.

Mitton-Fry, R.M.Rasche, R.Lawrence-Dorner, A.M.Eschenbach, J.Tekath, A.Rentmeister, A.Kummel, D.Cornelissen, N.V.

(2025) RSC Chem Biol 6: 1328-1335

  • DOI: https://doi.org/10.1039/d5cb00108k
  • Primary Citation of Related Structures:
    9IGQ, 9IGR

  • PubMed Abstract:

    Nucleobase-modified nucleoside-5'-triphosphates (NTPs) are important building blocks for the enzymatic synthesis of non-coding RNAs and mRNAs with improved properties. Chemical phosphorylation of base-modified nucleotides to NTPs remains challenging. Here, we report the enzymatic phosphorylation of purine-modified nucleoside-5'-monophosphates (NMPs) to the corresponding NTPs by the polyphosphate kinase 2 class III from an Erysipelotrichaceae bacterium (EbPPK2). The enzyme is highly promiscuous, accepting a range of NMPs with purine modifications. EbPPK2 efficiently catalyses the formation of the corresponding di-, tri- and tetraphosphates, typically with >70% conversion to the NTP. Slower conversion was observed for analogues with oxo- or thio-substitutions at the C6-position. To better understand nucleotide binding and catalysis, we determined the crystal structure of EbPPK2 at 1.7 Å resolution bound to a non-hydrolysable ATP analogue and polyphosphate. This enabled structure-guided design of EbPPK2 variants that efficiently convert GMP analogues, while retaining activity for AMP. Apart from being the preferred industrial-scale ATP recycling catalyst, EbPPK2 and variants bear potential to become the favoured enzyme family for purine-modified NTP production.


  • Organizational Affiliation
    • Institute of Biochemistry, University of Münster, Corrensstr. 36 D-48149 Münster Germany cornelissen@uni-muenster.de.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Polyphosphate--nucleotide phosphotransferase
A, B, C, D
306Erysipelotrichaceae bacteriumMutation(s): 1
Gene Names: DHS57_05705
UniProt
Find proteins for A0A176U584 (Clostridiales bacterium KLE1615)
Explore A0A176U584
Go to UniProtKB:  A0A176U584
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A176U584
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
6YY (Subject of Investigation/LOI)
Query on 6YY

Download Ideal Coordinates CCD File
E [auth A],
F [auth B],
I [auth C],
L [auth D]
bis[oxidanyl-[oxidanyl-[oxidanyl-[oxidanyl(phosphonooxy)phosphoryl]oxy-phosphoryl]oxy-phosphoryl]oxy-phosphoryl] hydrogen phosphate
H13 O34 P11
BWFYHHXRACTZIV-UHFFFAOYSA-N
BEZ
Query on BEZ

Download Ideal Coordinates CCD File
G [auth B],
J [auth C]
BENZOIC ACID
C7 H6 O2
WPYMKLBDIGXBTP-UHFFFAOYSA-N
PO4
Query on PO4

Download Ideal Coordinates CCD File
H [auth B],
M [auth D],
N [auth D]
PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
MG
Query on MG

Download Ideal Coordinates CCD File
K [auth C],
O [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.31 Å
  • R-Value Free:  0.213 (Depositor), 0.213 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.176 (DCC)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 160.471α = 90
b = 88.265β = 101.151
c = 125.344γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing
MxCuBEdata collection
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
  • Version 1.1: 2025-07-30
    Changes: Database references
  • Version 1.2: 2025-08-13
    Changes: Database references
